Athena II
In production, shipping begins May 2025, unless Express Air Shipping is chosen. [see updates]
*By clicking "Pre-order" I understand that I am purchasing a PRE-ORDER product and not an IN-STOCK product, and that I will be responsible for any relevant taxes, tariffs and import duties for my country. Therefore I agree to the Terms & Conditions of the pre-order process.
Orders are shipped in the order they are received, so placing your order early ensures faster delivery.

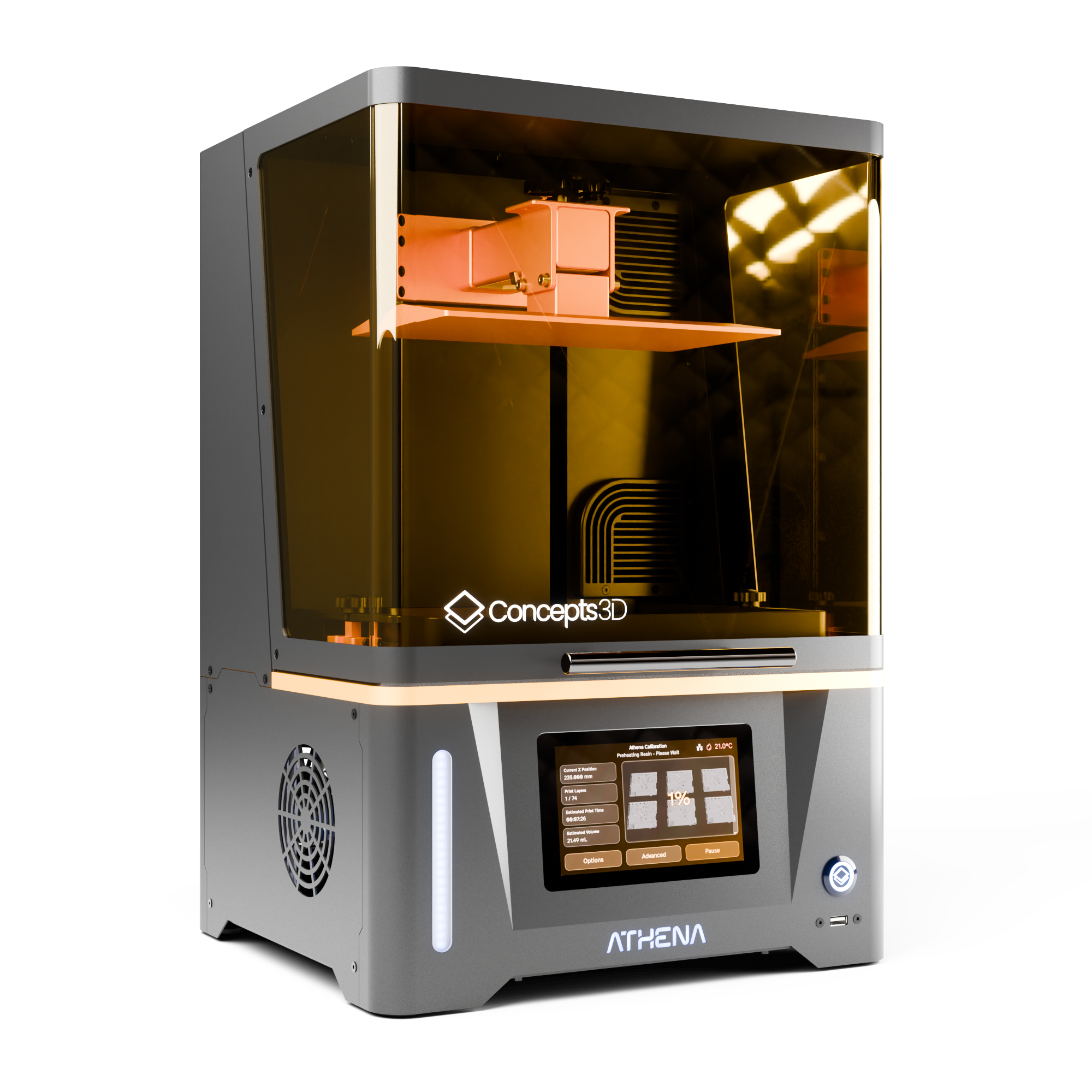

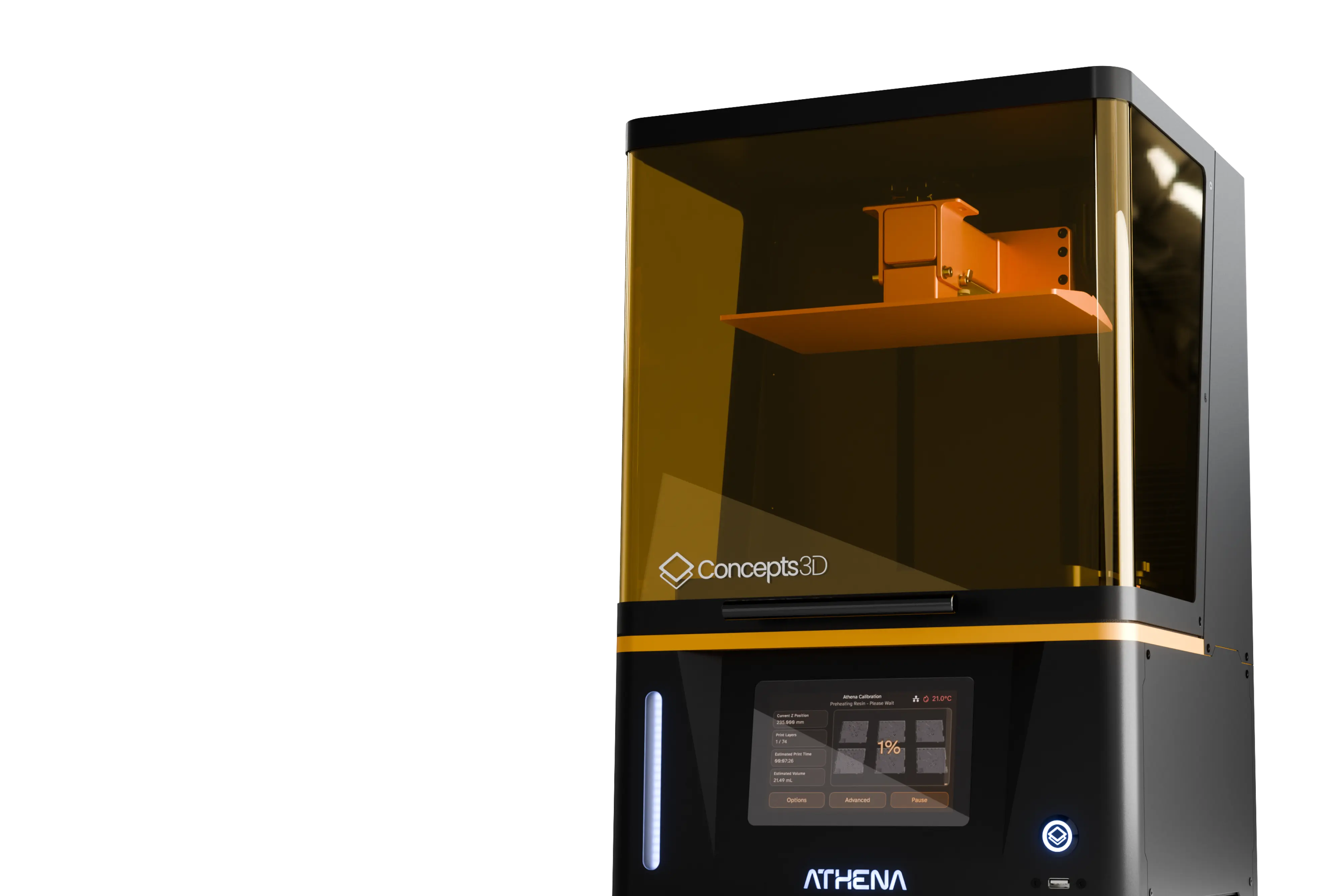

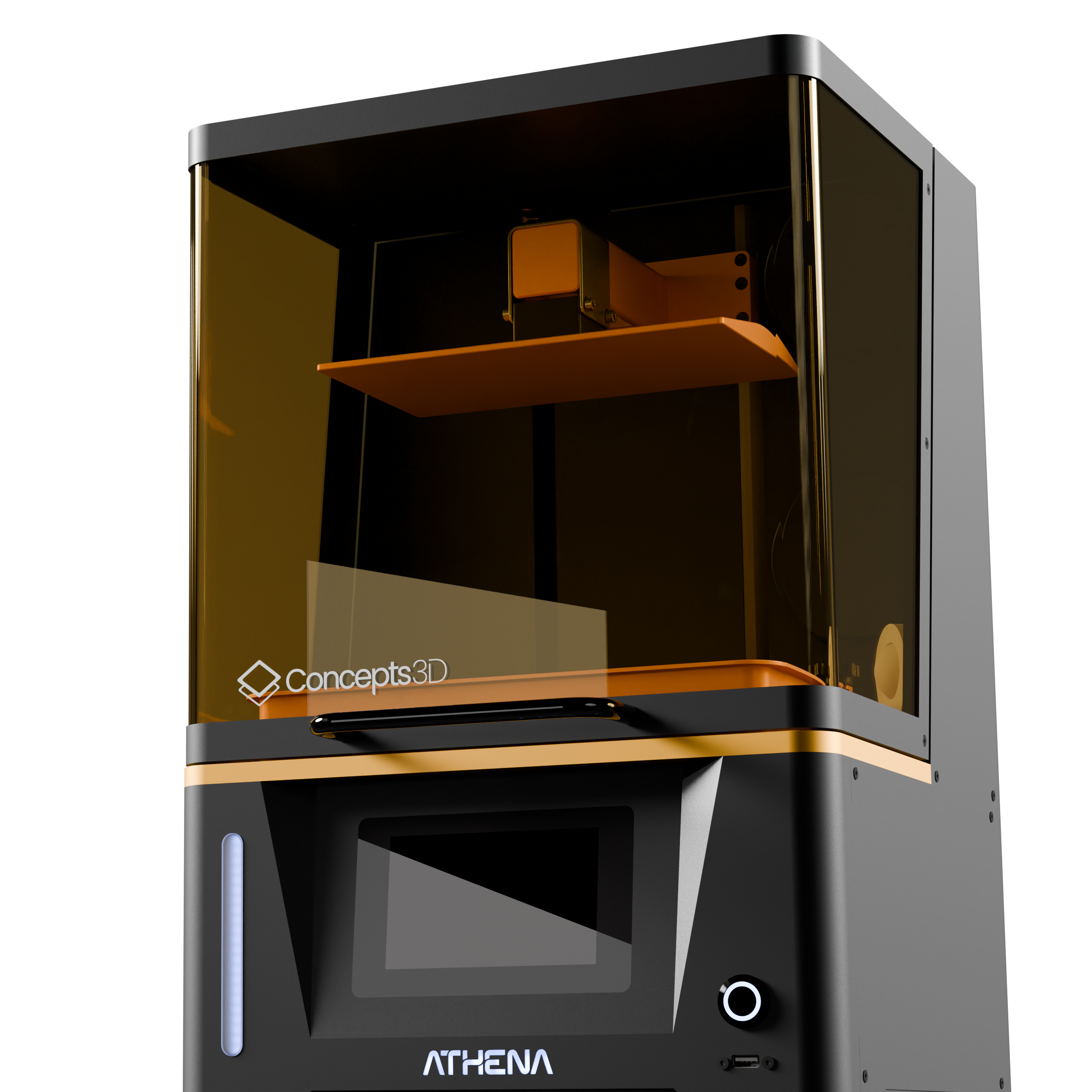

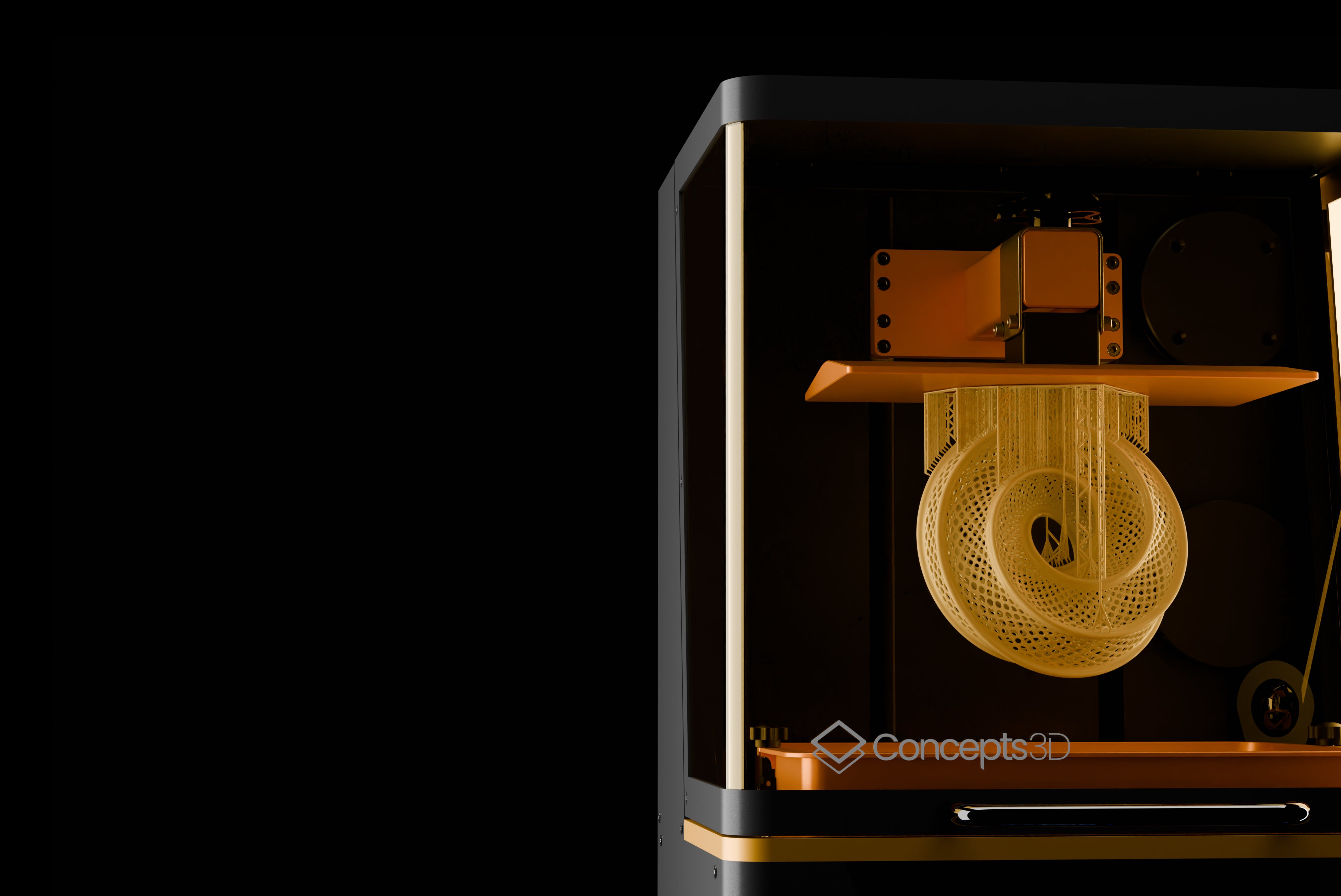

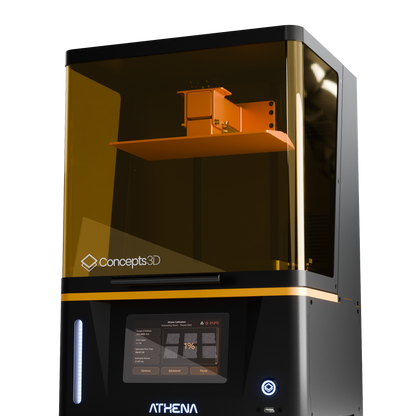

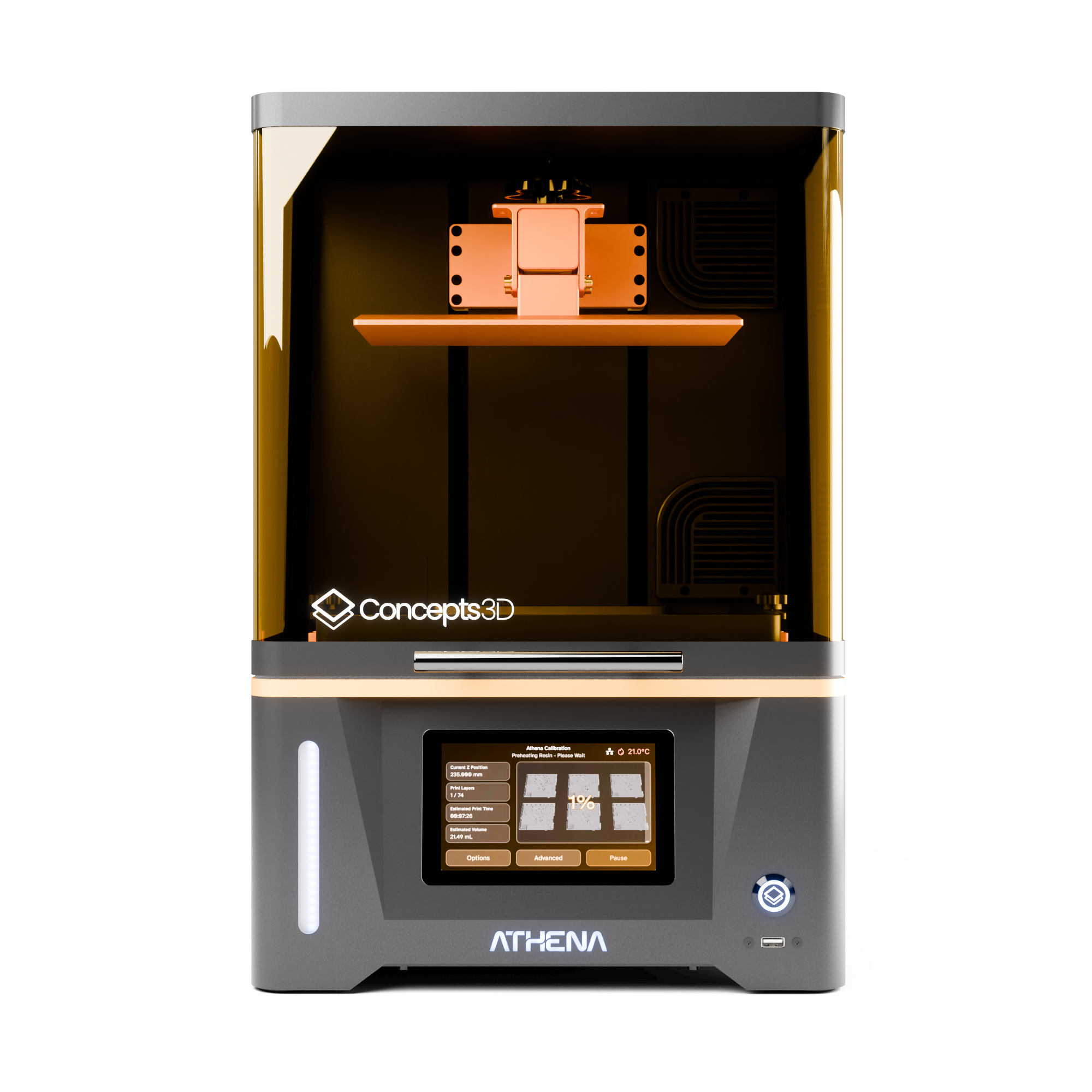

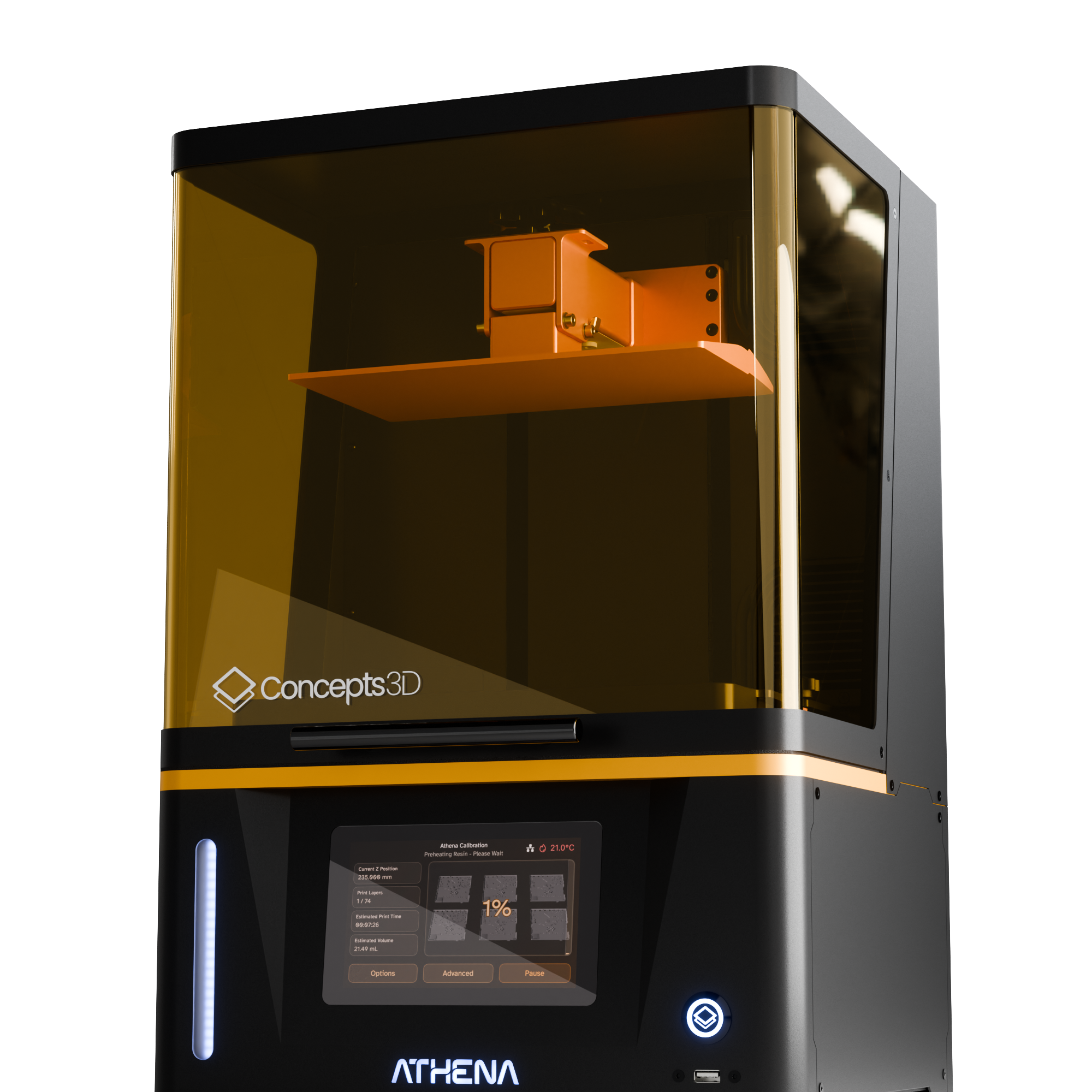

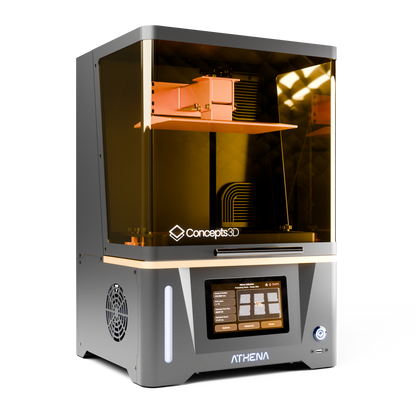

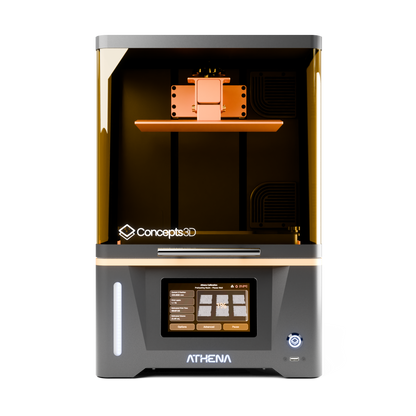

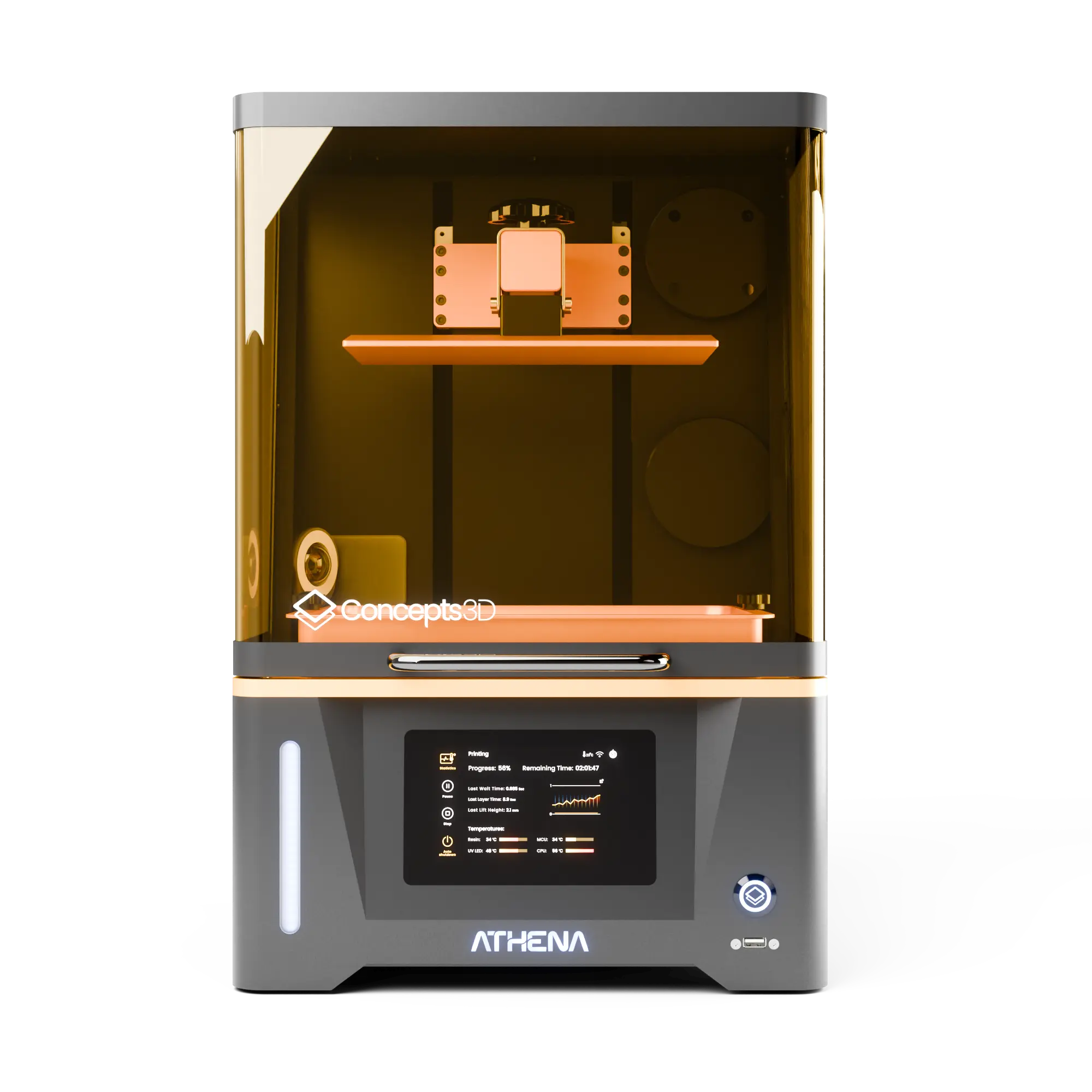

Athena II

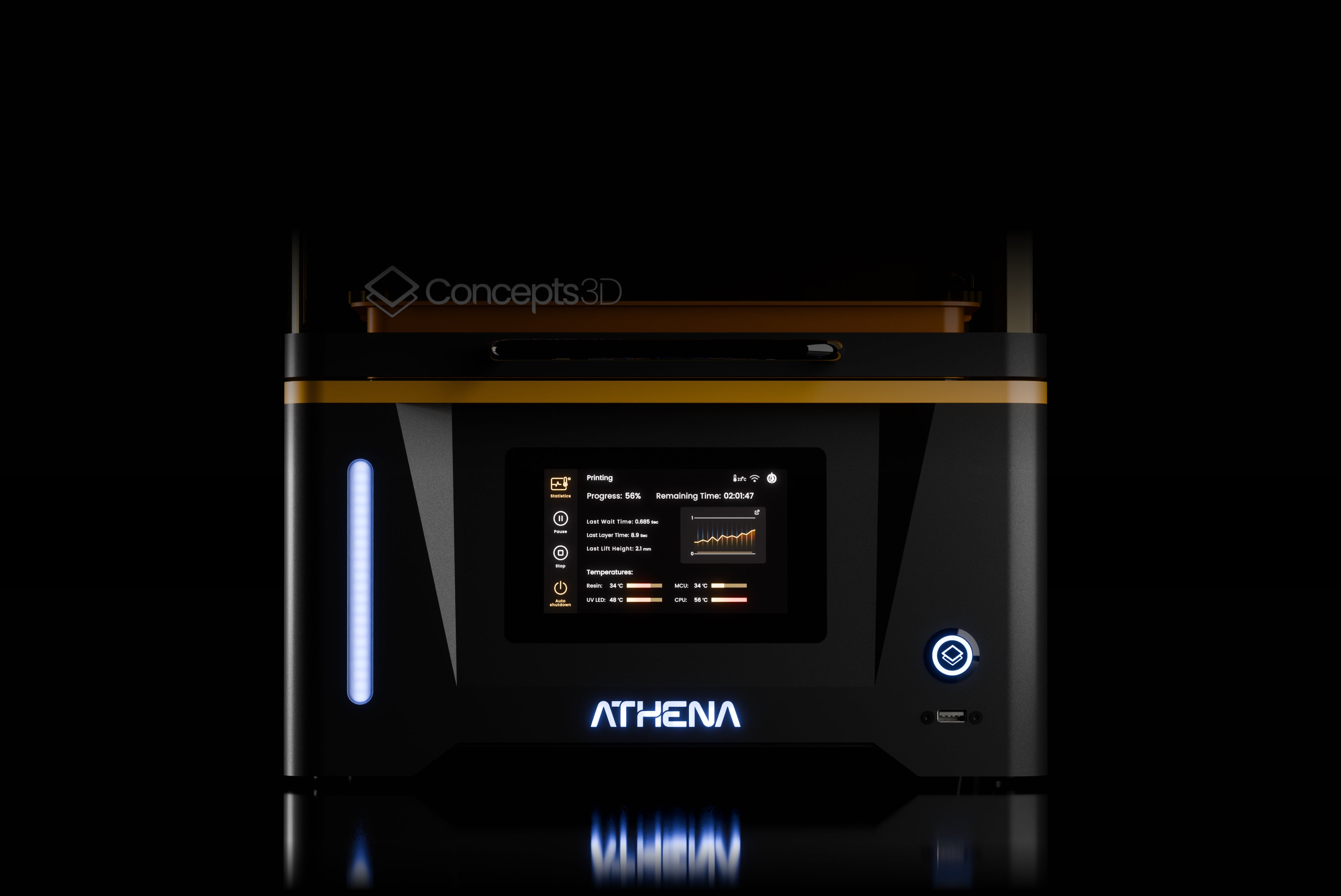

A customizable LED light bar to indicate progress, alerts, and other status
Sturdy, all-metal construction

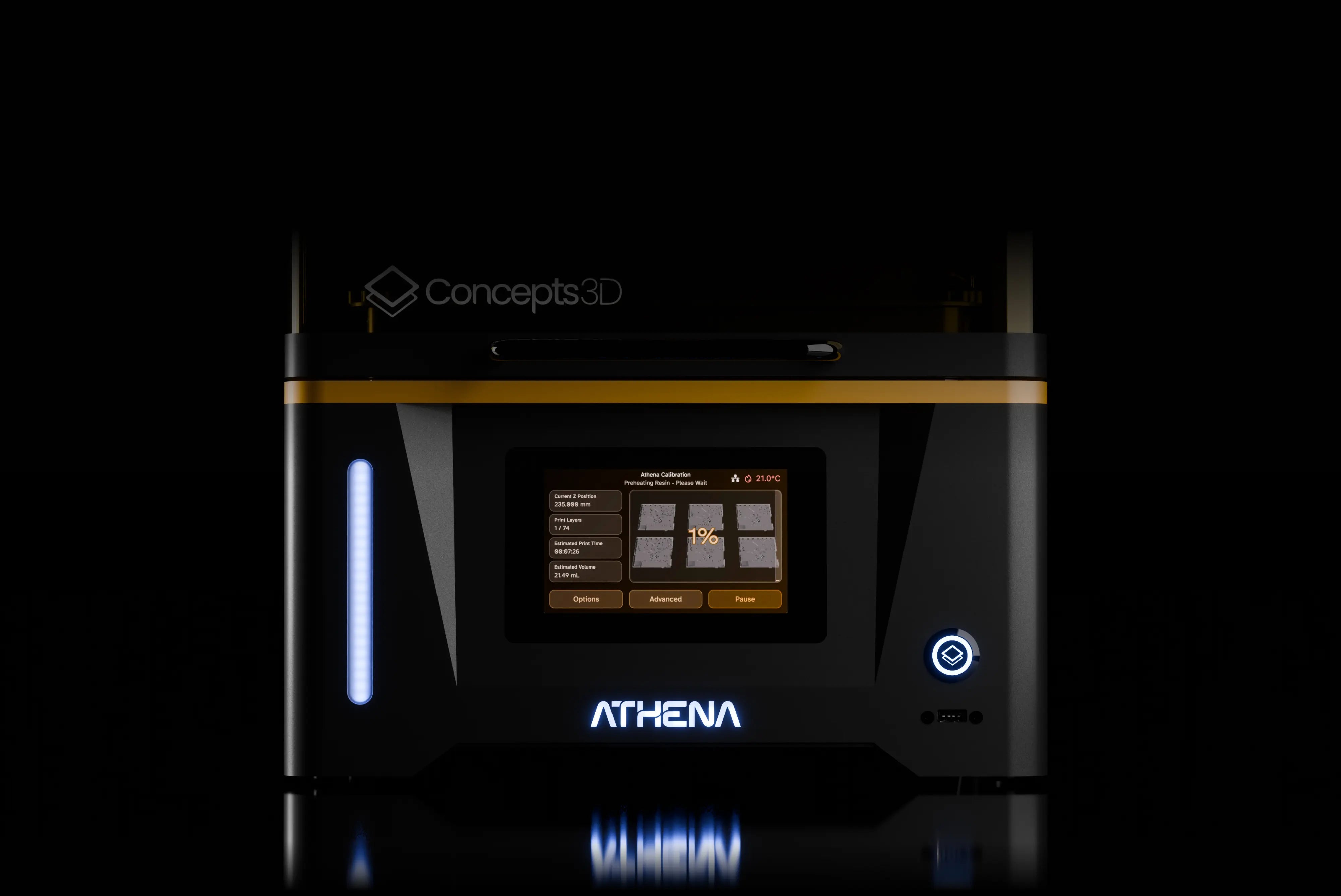

High resolution, Capacitive touch, Glass touchscreen

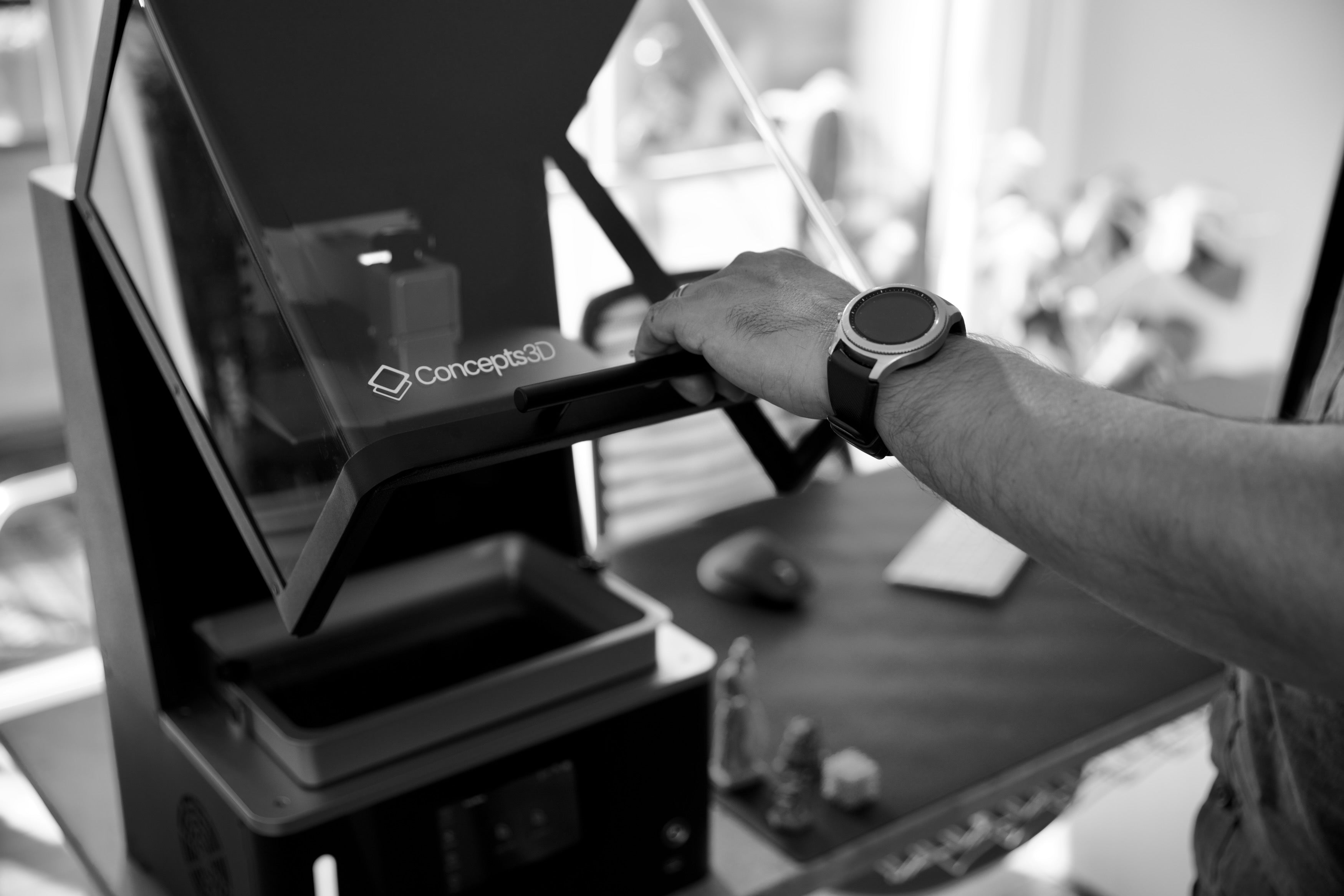

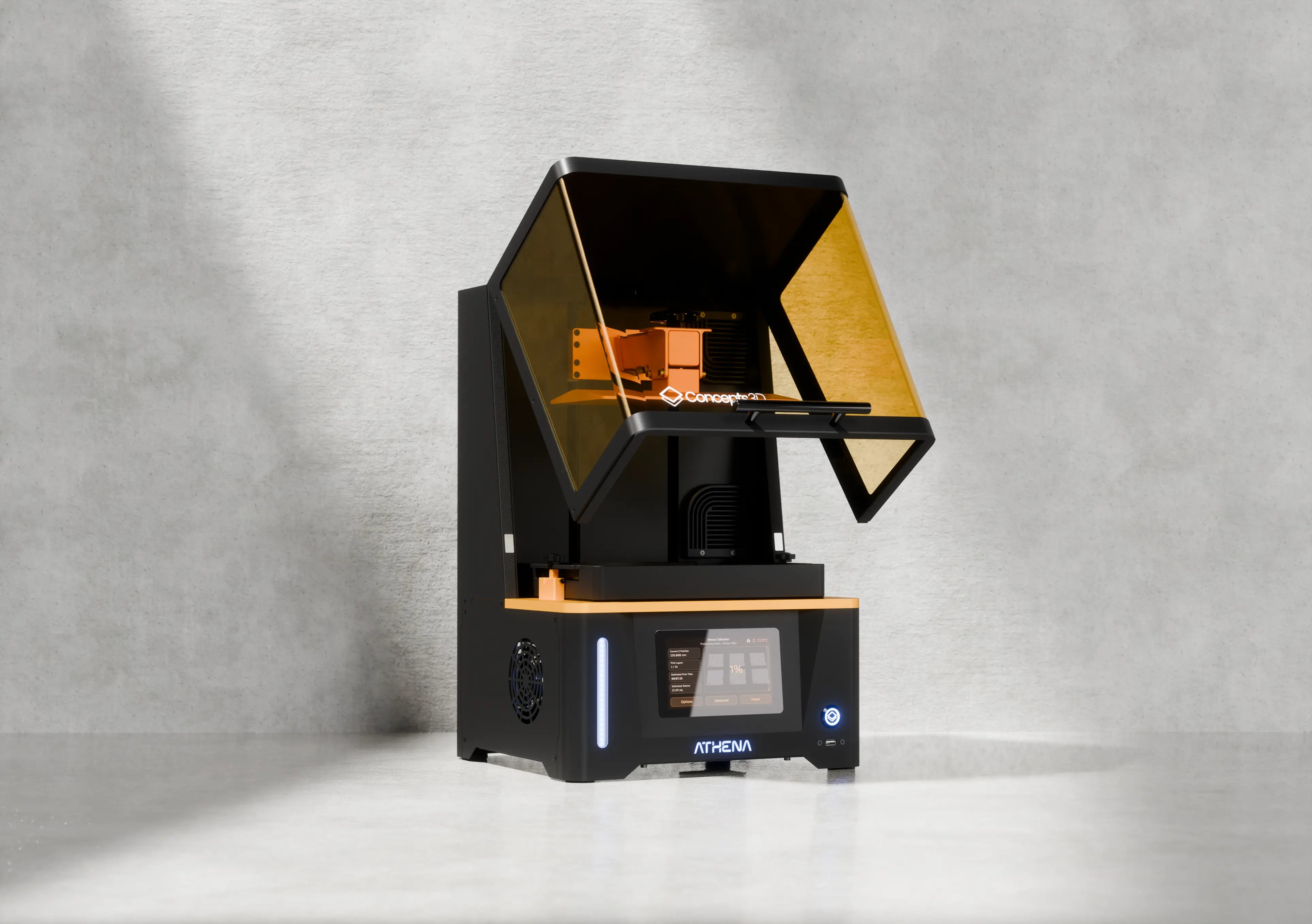

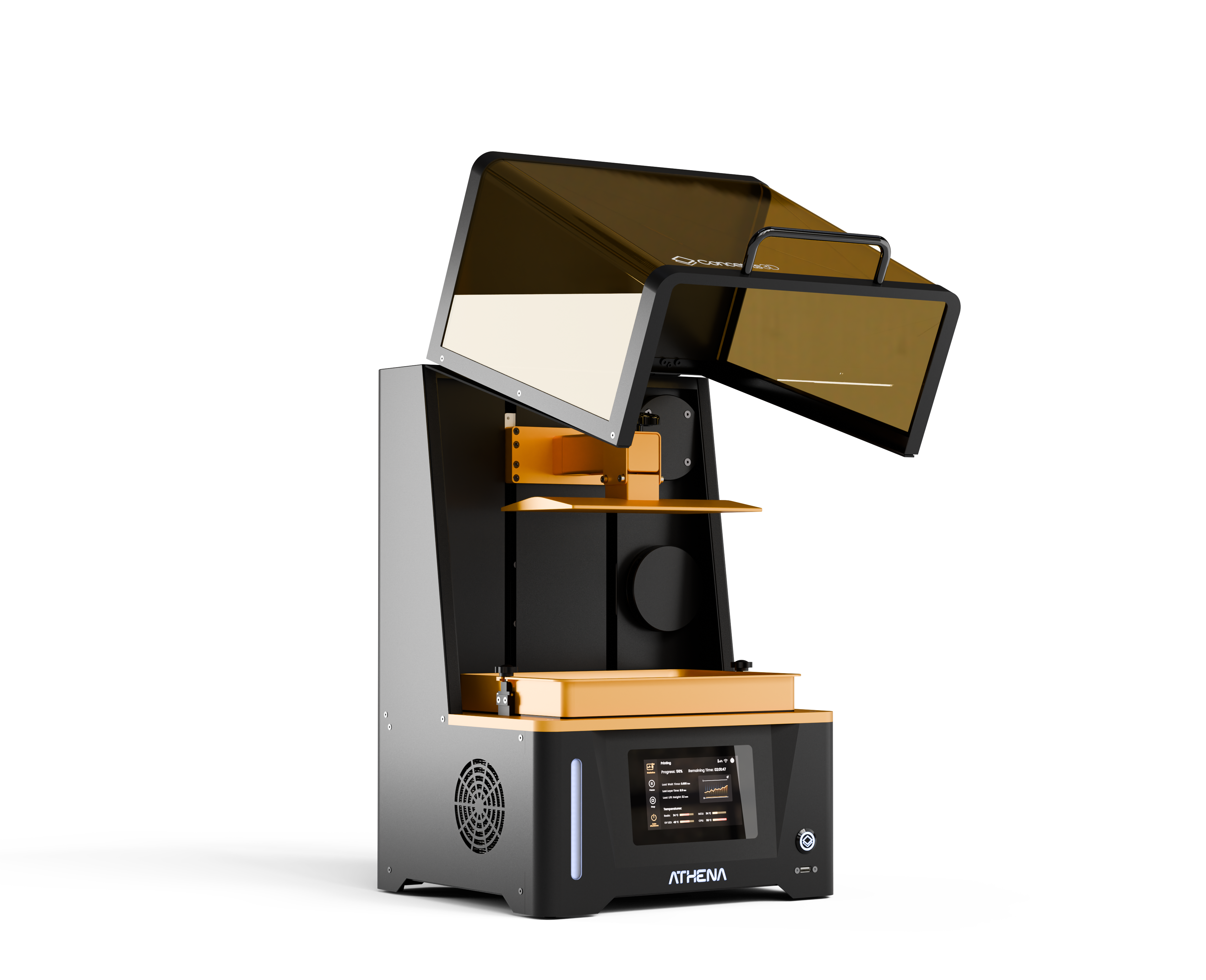

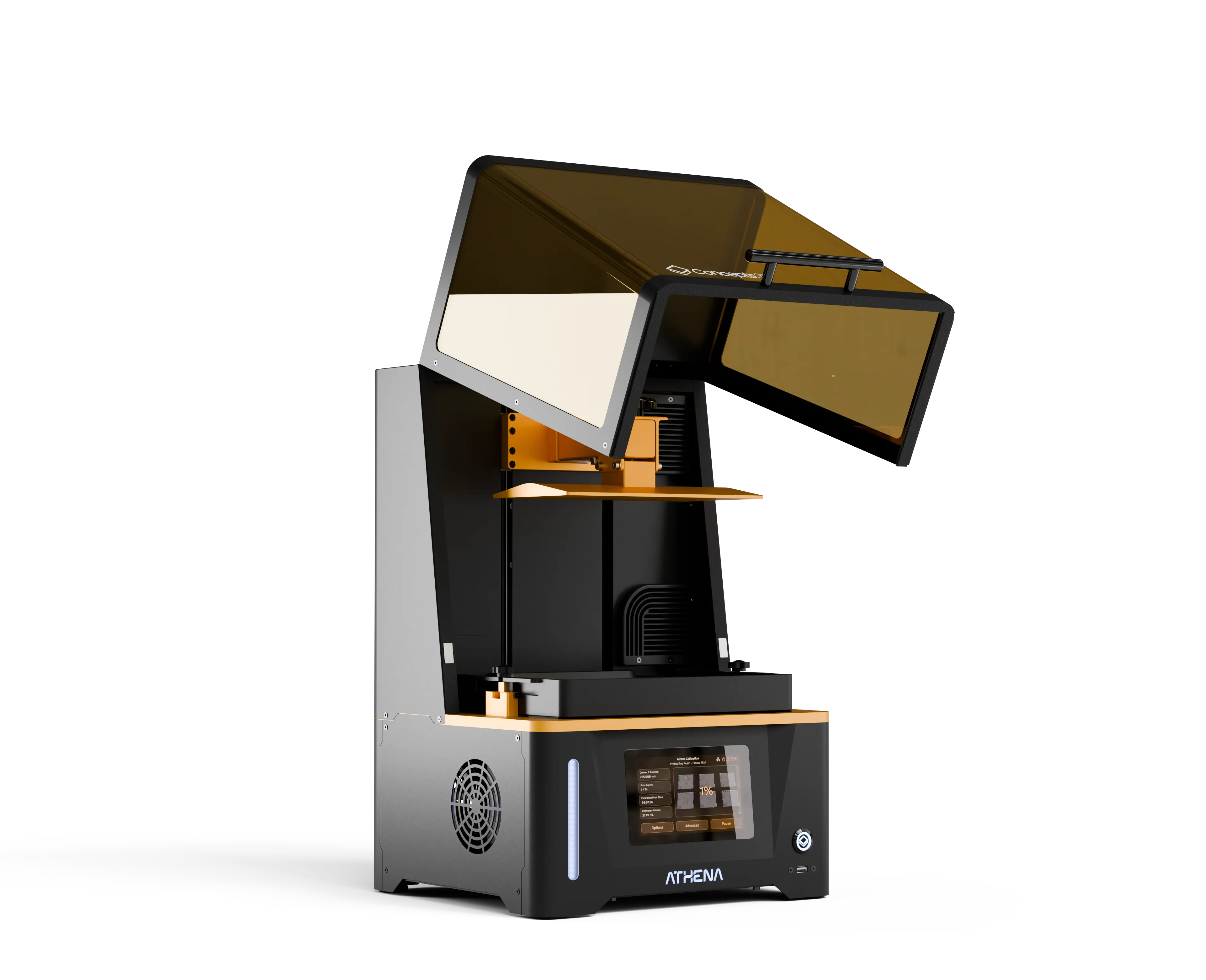

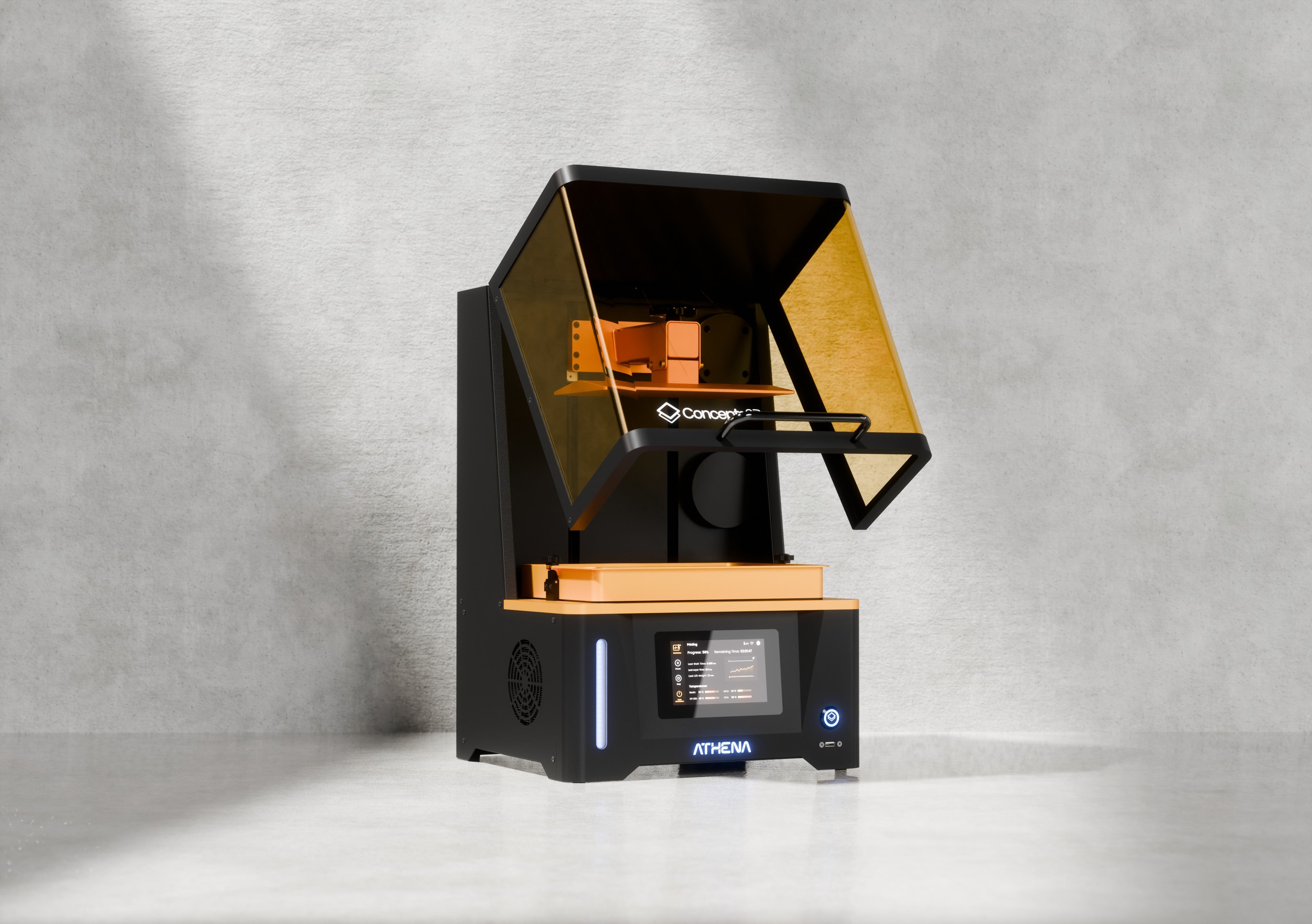

Stable flip-up door, stays where you put it
Built in air purifier with a custom blend of filter media for effective VOC removal
Maintain consistent chamber temperatures in even the coldest environments
Customize your Athena to fit your needs.
Upgrades

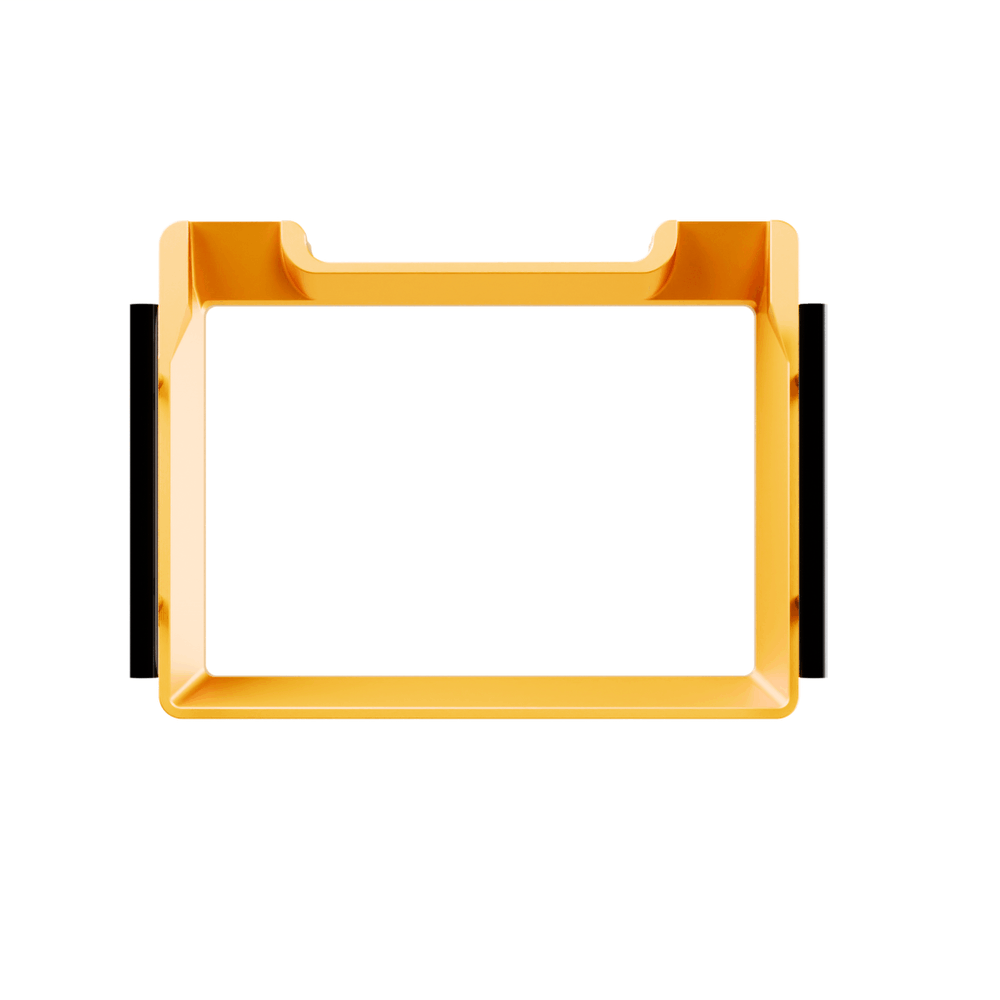

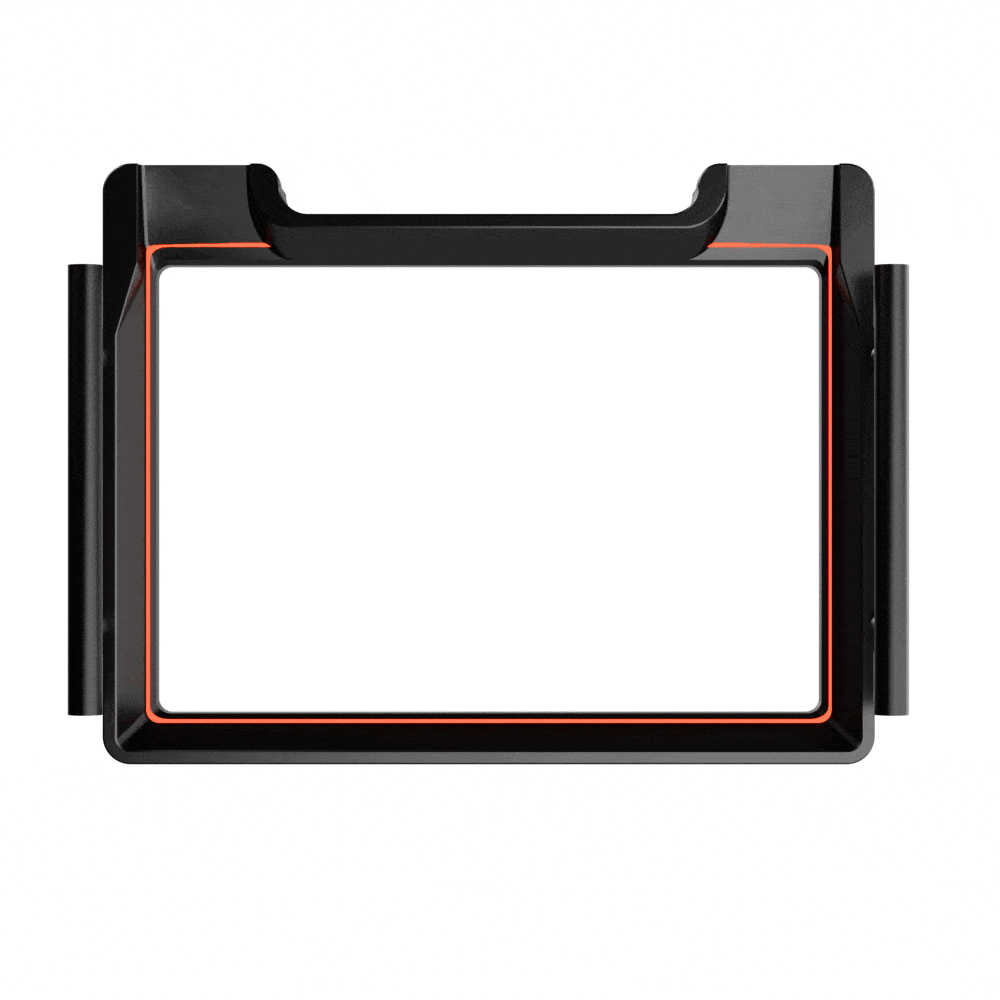

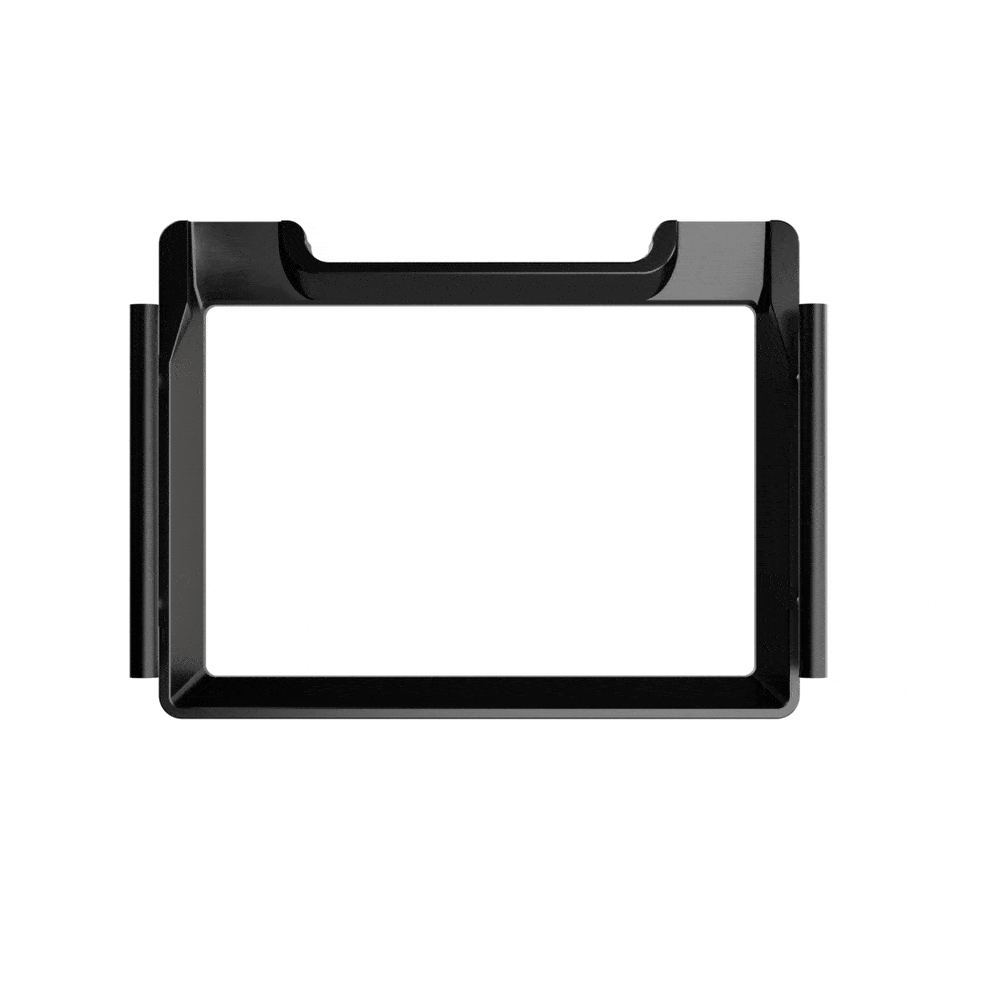

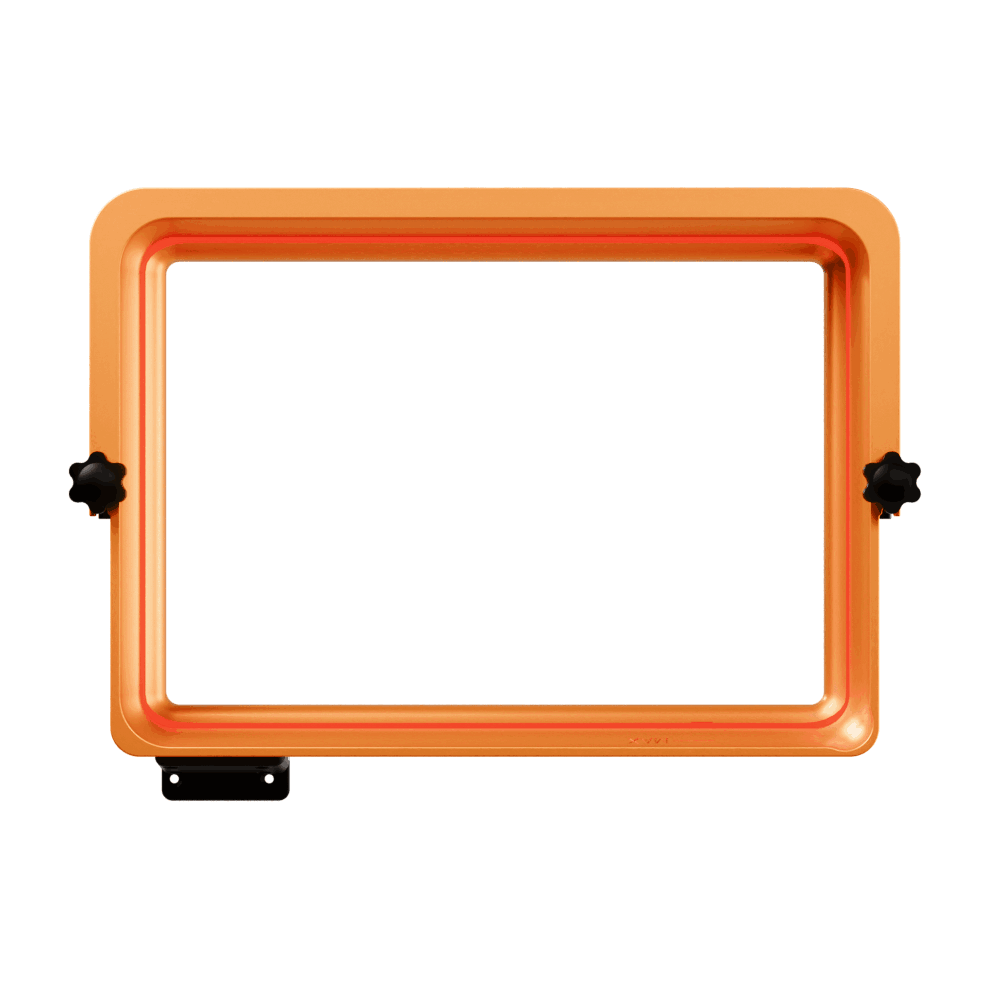

Pro Resin Vat
The Pro Resin Vat is a significant enhancement over the standard vat, featuring ergonomic vertical handles for improved grip and ease of handling. It also includes precision-engineered pouring spouts, making it simpler and less messy to return resin to storage. The Pro Vat retains the integrated vat heater for consistent resin temperatures and is future-ready for use with our upcoming resin pump upgrade.

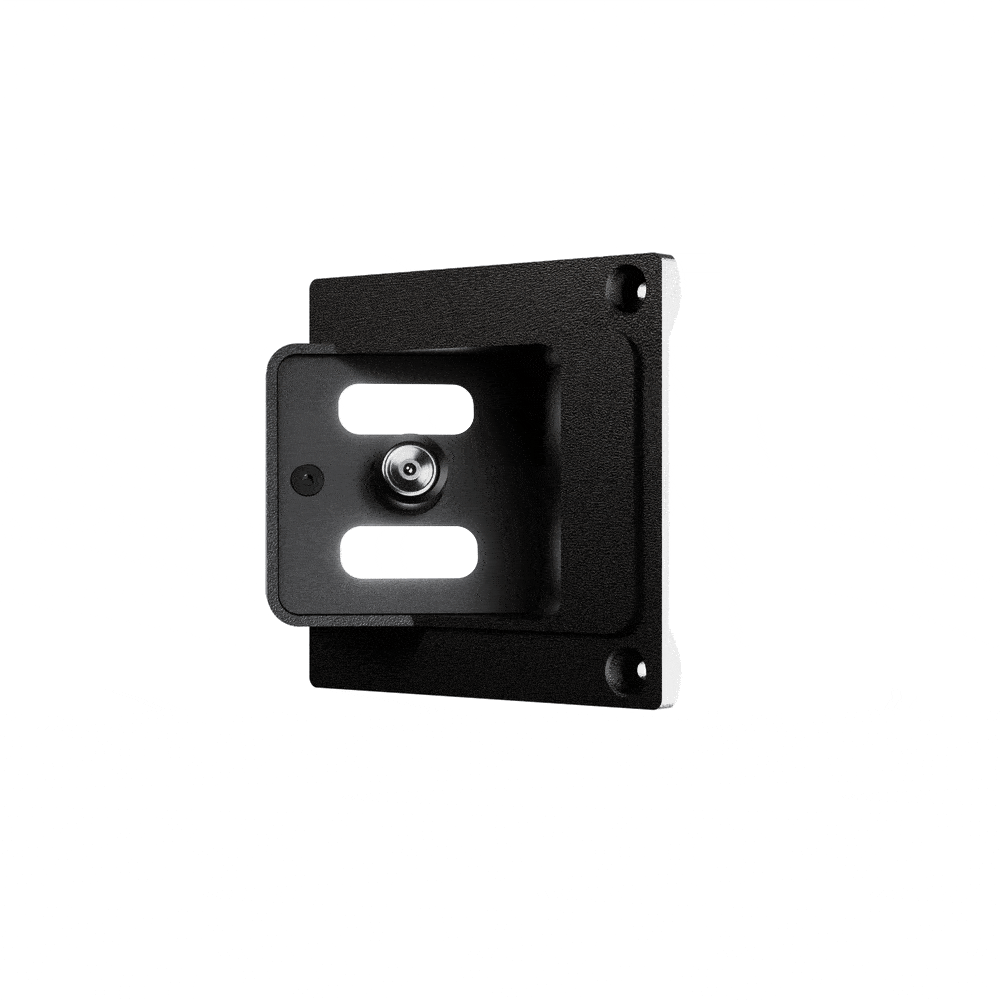

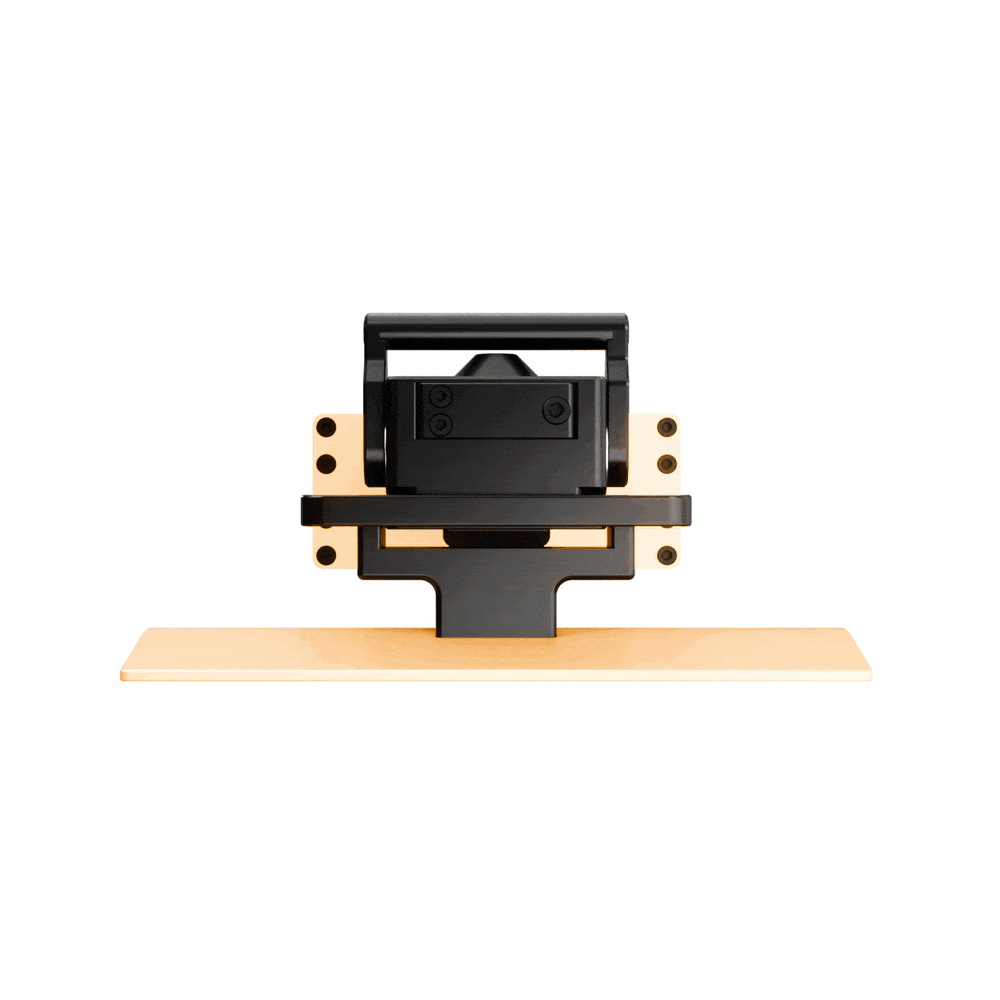

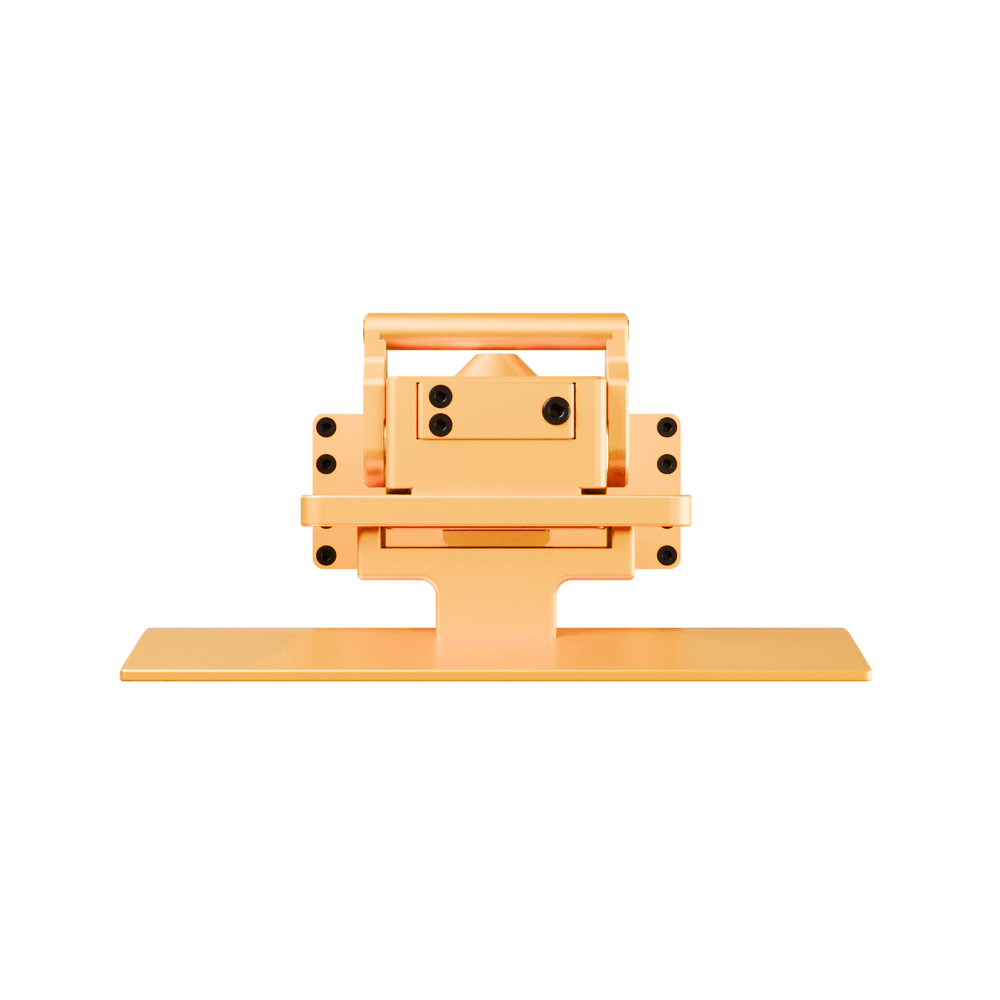

Pro Build Arm
The Pro Build Arm takes your printing experience to the next level with its robust all-metal design and innovative latch mechanism, offering a more secure and reliable attachment for the build plate. An upgraded leveling system simplifies plate adjustments, while the included Pro Build Plate Hanger adds ergonomic handles for easy and safe handling during post-processing.

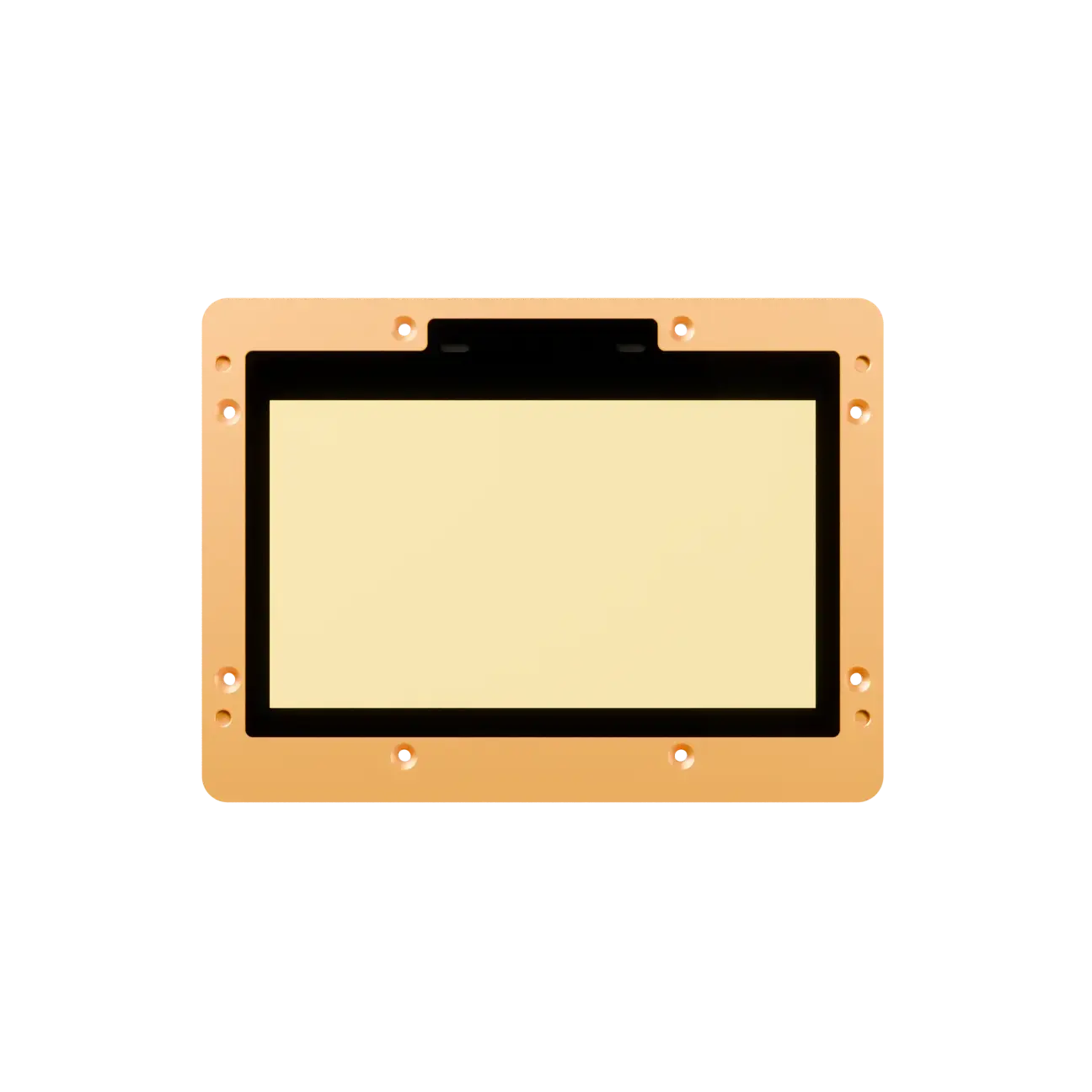

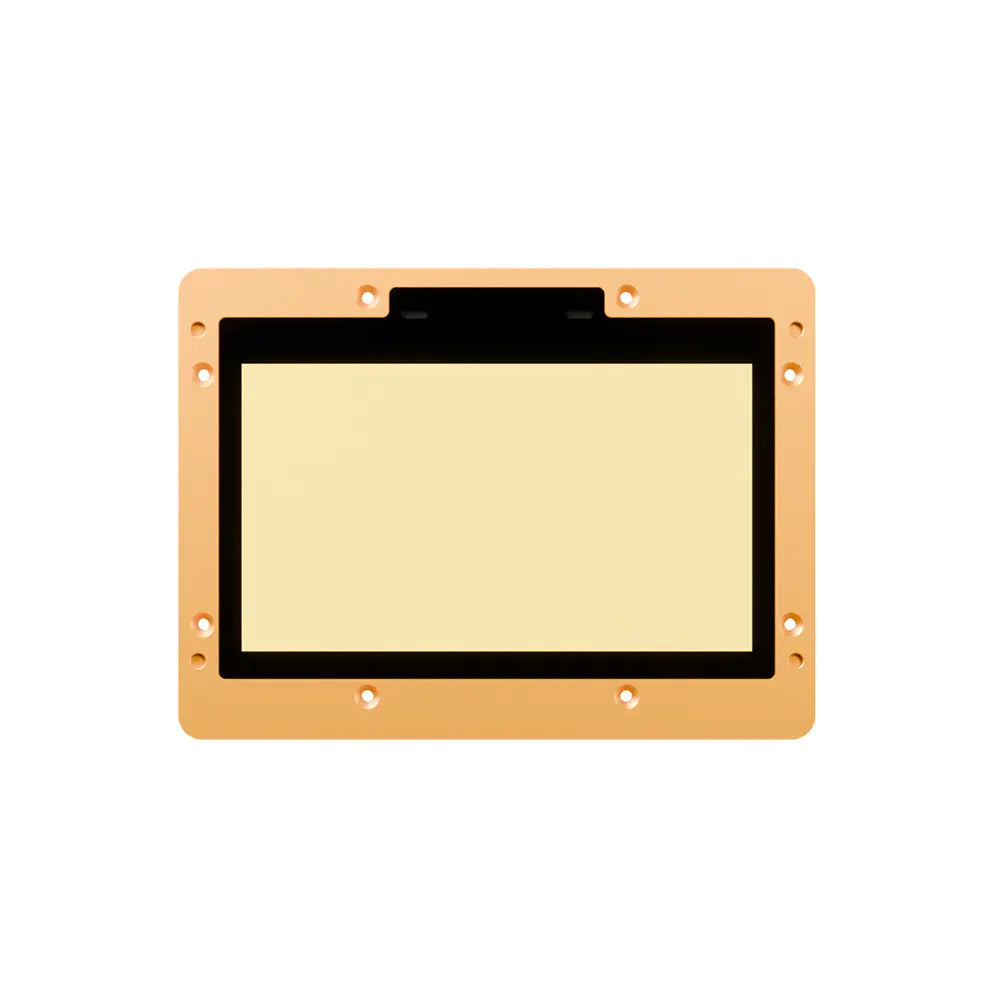

16K LCD
Elevate your printing precision with the 16K LCD upgrade, featuring the latest monochrome LCD technology with an advanced “Yellow” polarizer. This innovation boosts light transmittance, reduces light bleed for sharper edges, and supports wavelengths as low as 385nm, enabling compatibility with professional and industrial-grade resins like those from Formlabs and Loctite. Additionally, its enhanced durability ensures a longer lifespan by minimizing heat generation from blocked light.

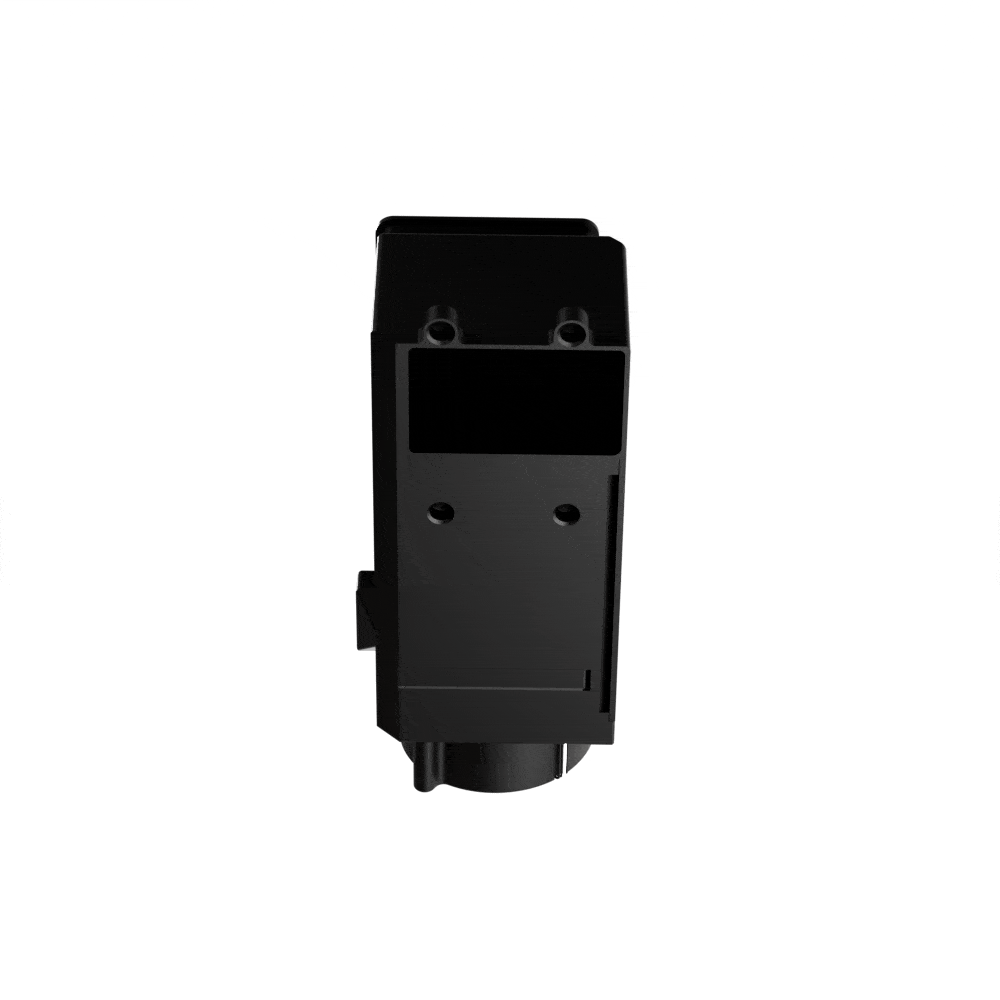

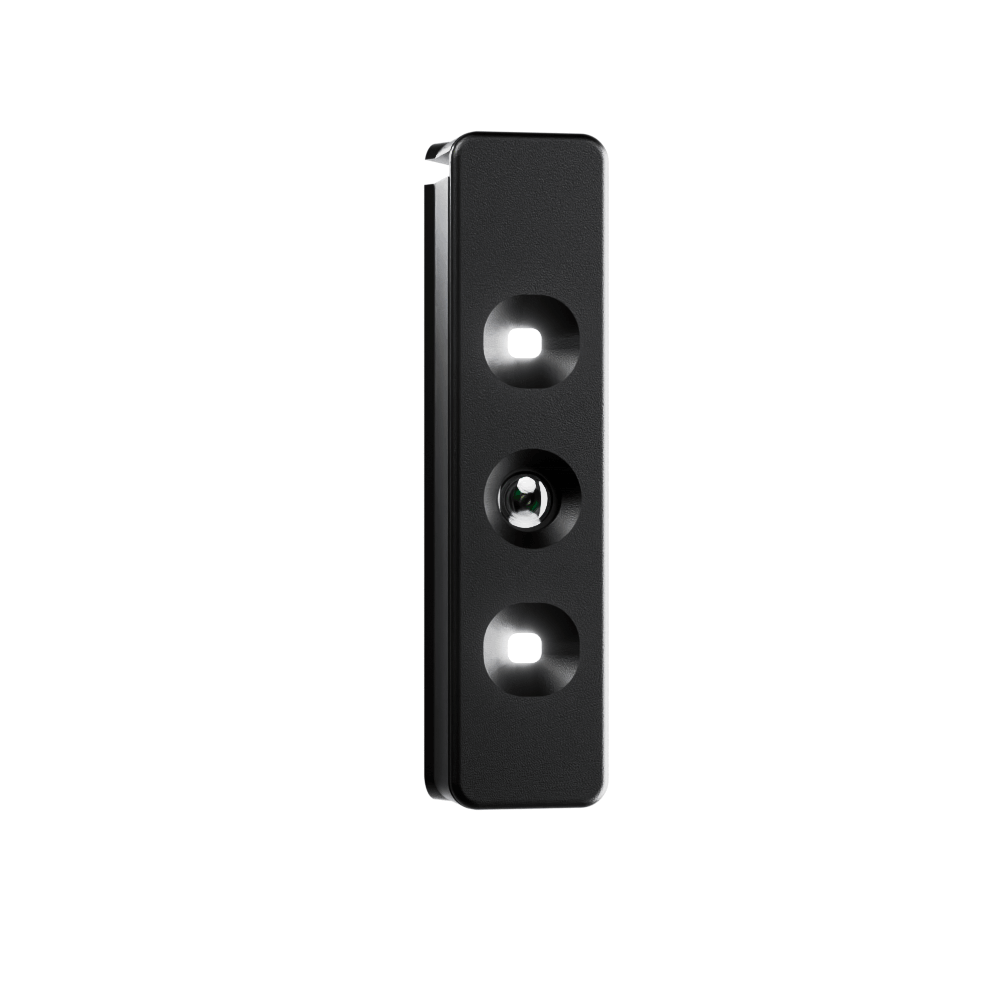

Theia - Camera
Theia, the dedicated camera for Athena printers, offers a high-performance imaging solution featuring a custom 8MP (4K) Sony IMX317 sensor. It captures crisp timelapse videos and live views of the printing process. Integrated LED lighting ensures clear visibility even in complete darkness, letting you monitor prints remotely and download detailed timelapse videos for analysis or sharing.

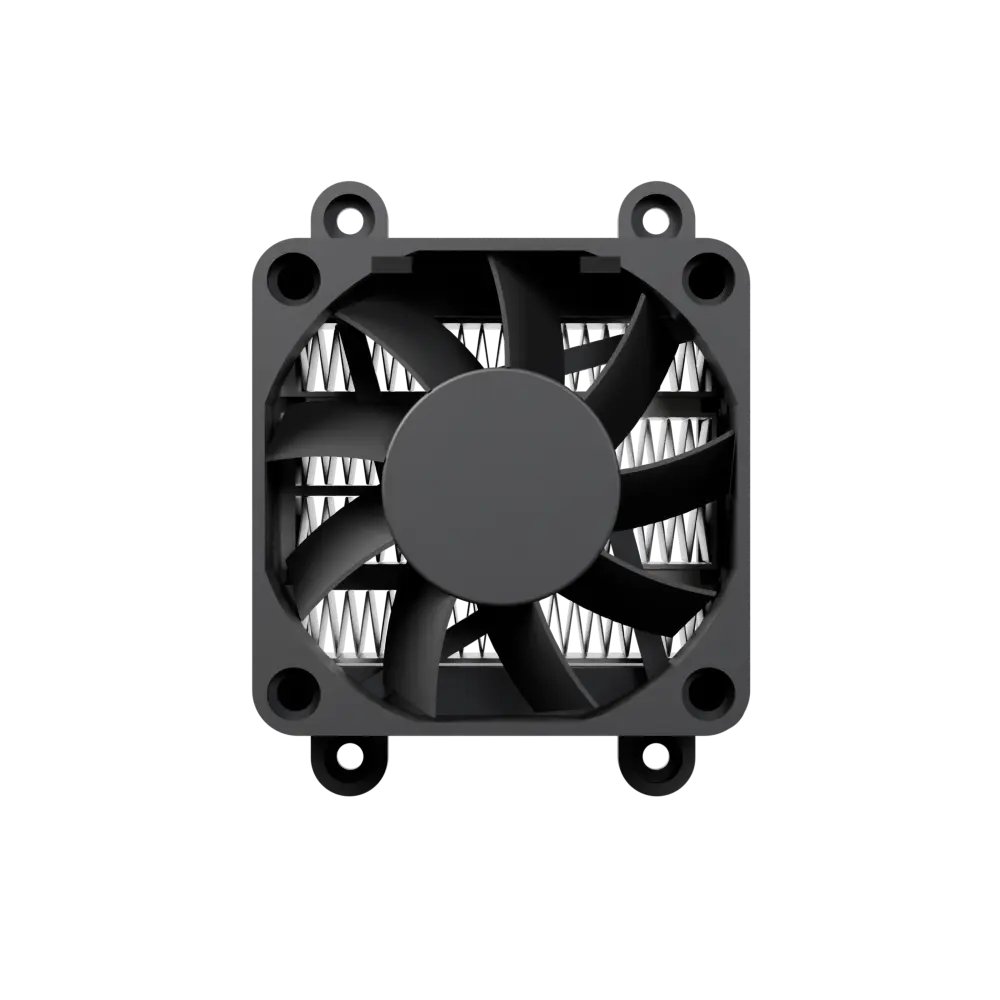

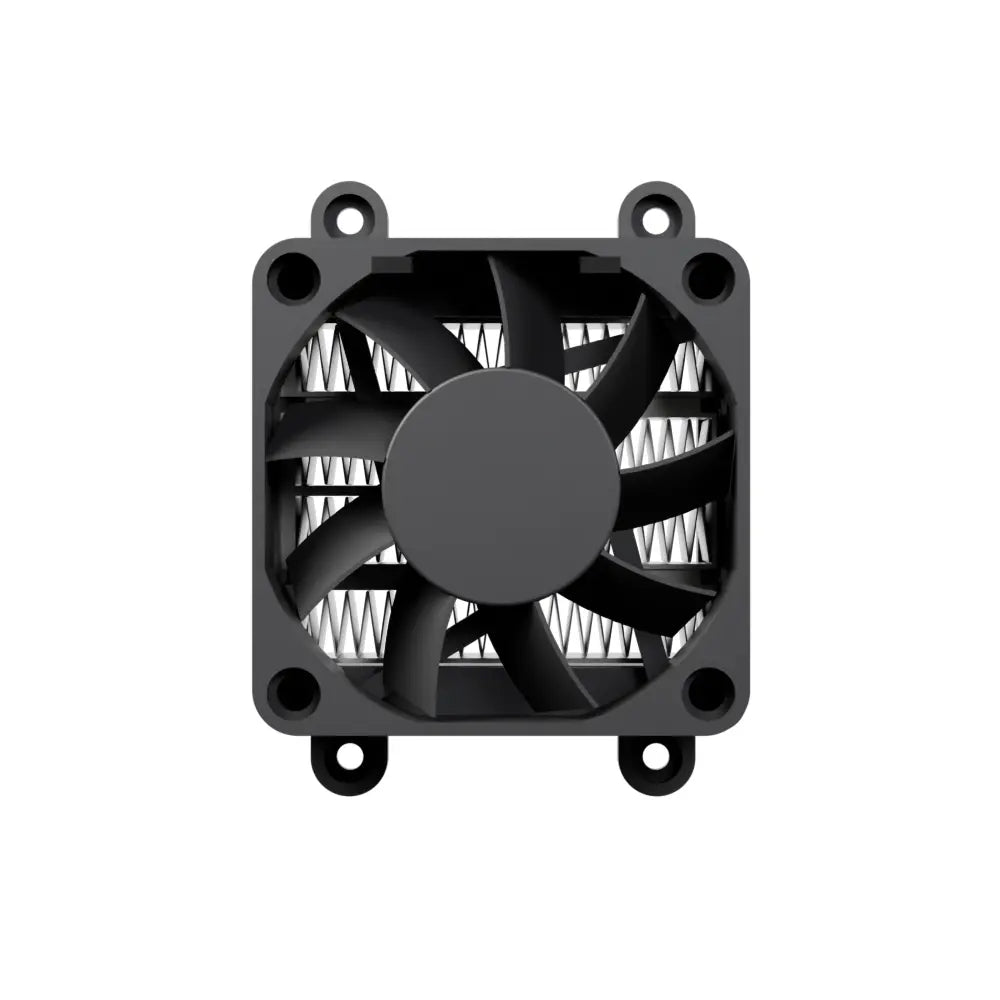

Chamber Heater
The optional chamber heater complements the included vat heater to ensure the entire printing chamber is uniformly warmed before starting a print. Ideal for users who keep their printer in colder environments, such as garages or workshops, the chamber heater maintains a stable internal temperature, safeguarding print quality regardless of external conditions.

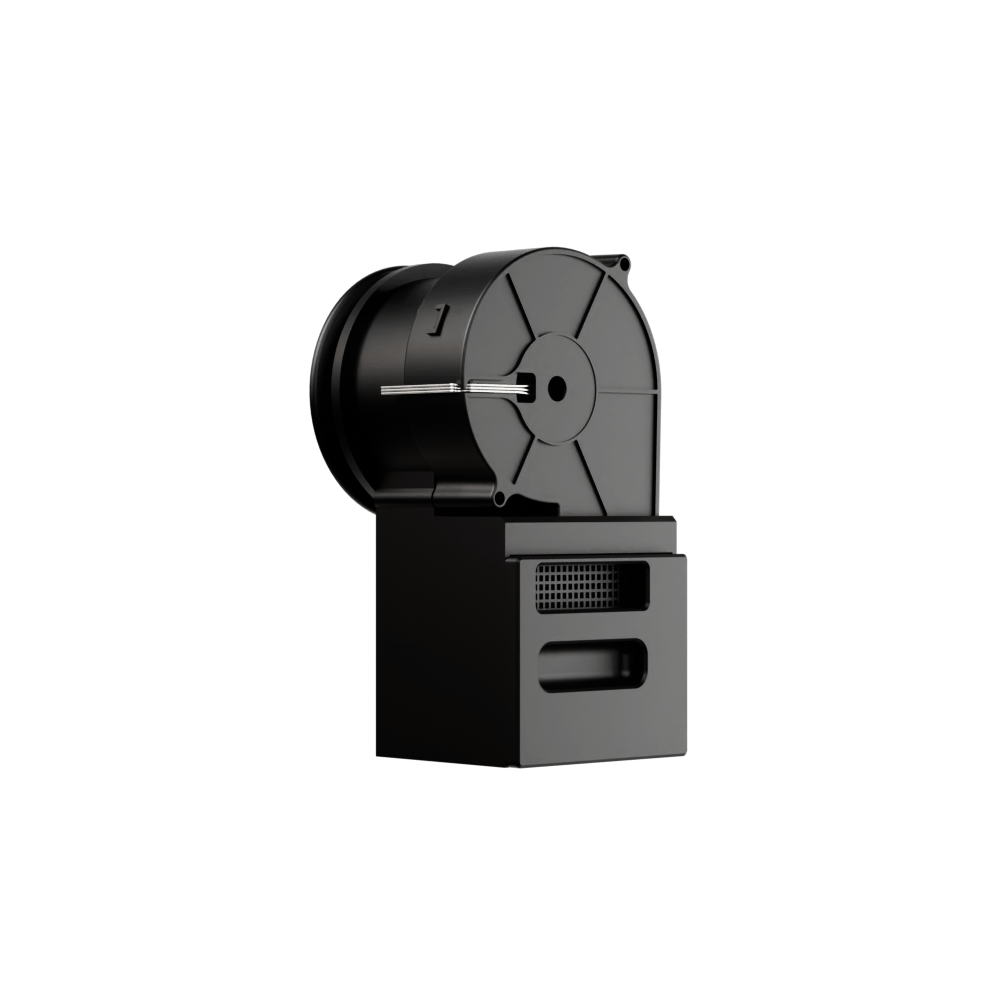

Aegis - Air Filter System
The Aegis air filter system is designed to efficiently remove harmful VOCs from the printing chamber. It uses a custom blend of activated carbon and advanced zeolite filter media, significantly outperforming conventional systems. Equipped with dual VOC sensors, Aegis actively monitors air quality, alerts users when VOC levels are safe, and notifies when the filter media needs replacement for consistent performance.
Technology & Core Components
Technology: mSLA (LCD + UVLED)
Light Source: Ultra High Power COB LED with Fresnel for highly collimated Light (over 90% uniformity)

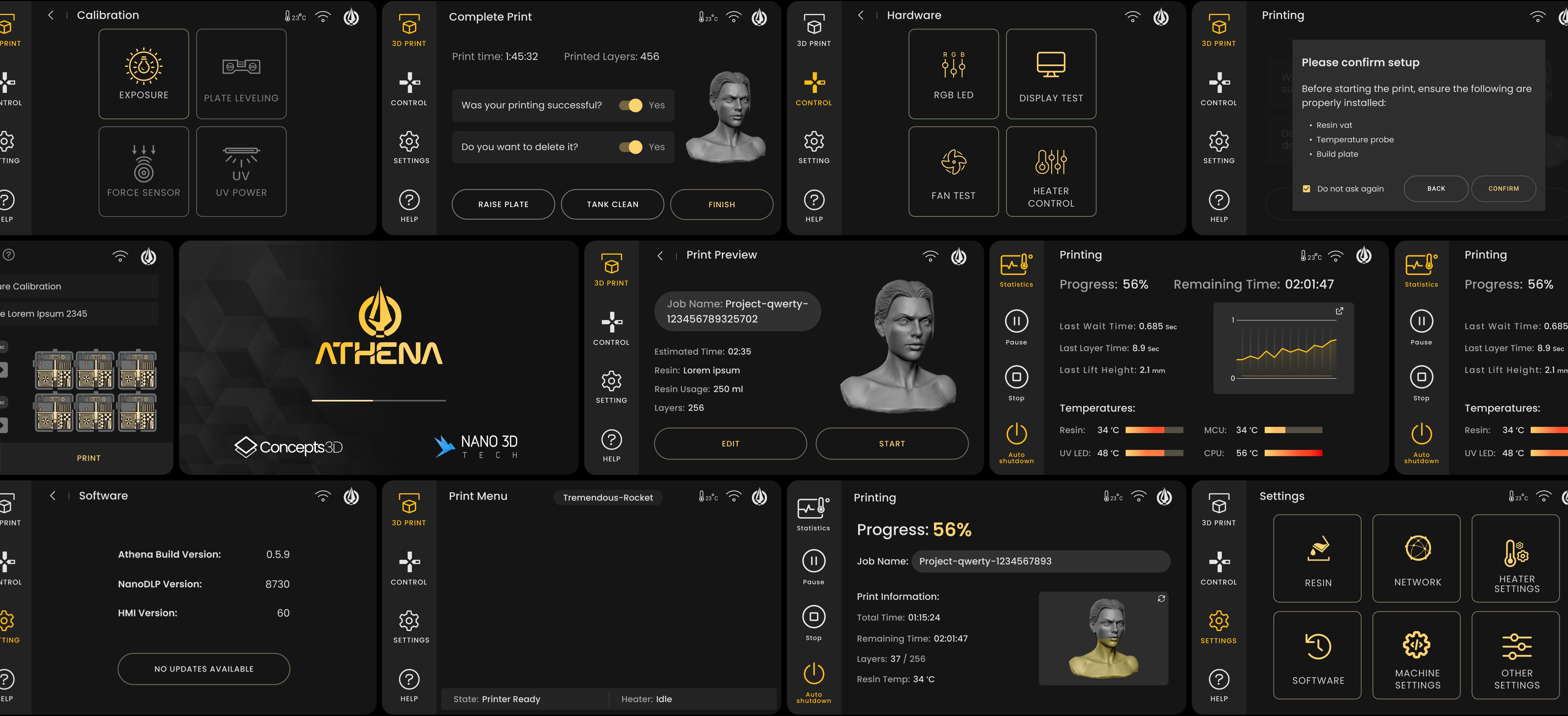

Touchscreen: Large 5" high resolution IPS touchscreen with capacitive touch
Electronics: Custom Motherboard with Pi Hardware (opensource), Expandable, upgradable, ready for future add-ons

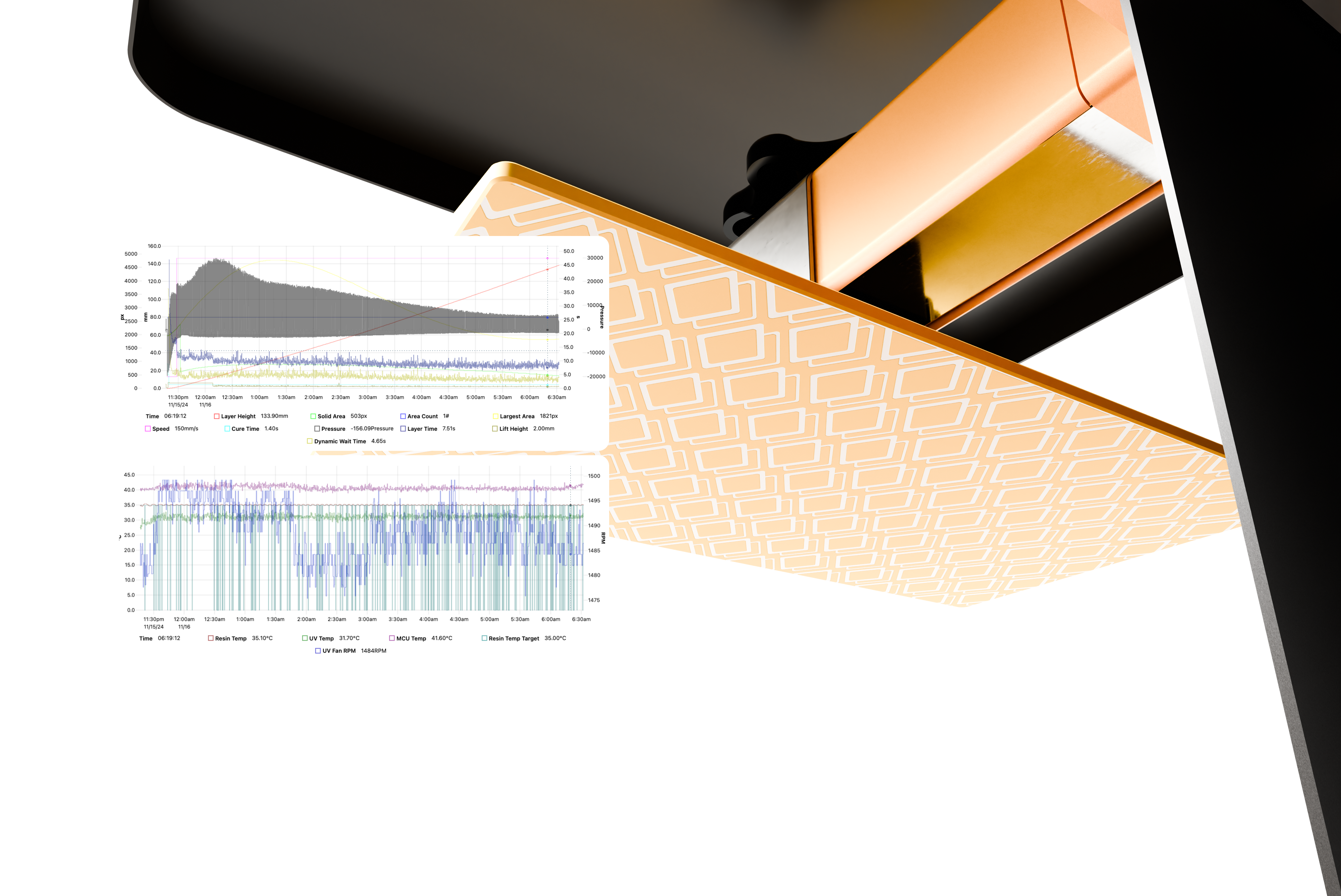

Sensors: Resin Temperature, Chamber Temperature, UVLED Temperature, Humidity, Dual VOC, Z axis Force, Resin Level
Performance & Print Specifications

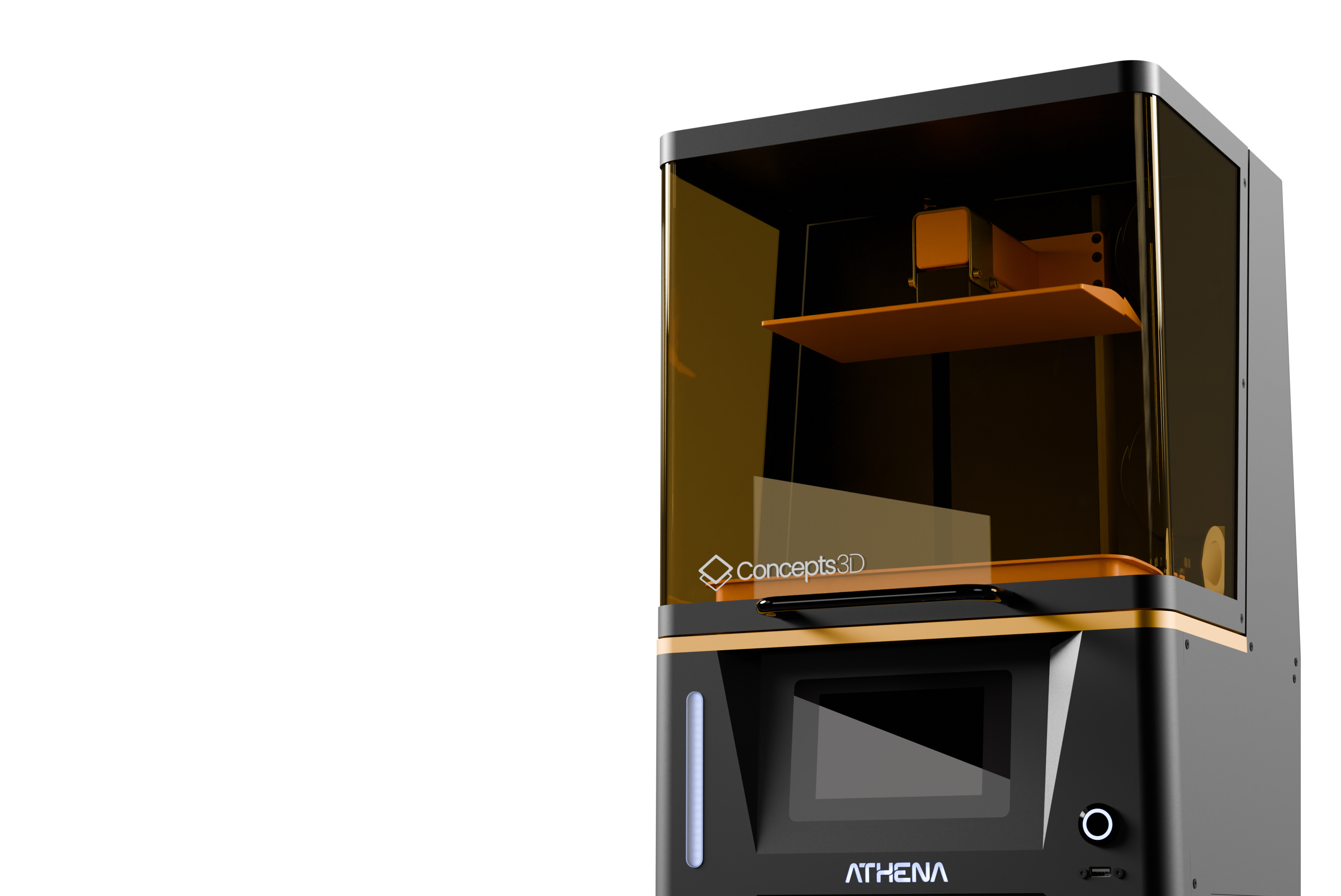

Print Speed: Sub 5 second layer times (40-100mm/h)

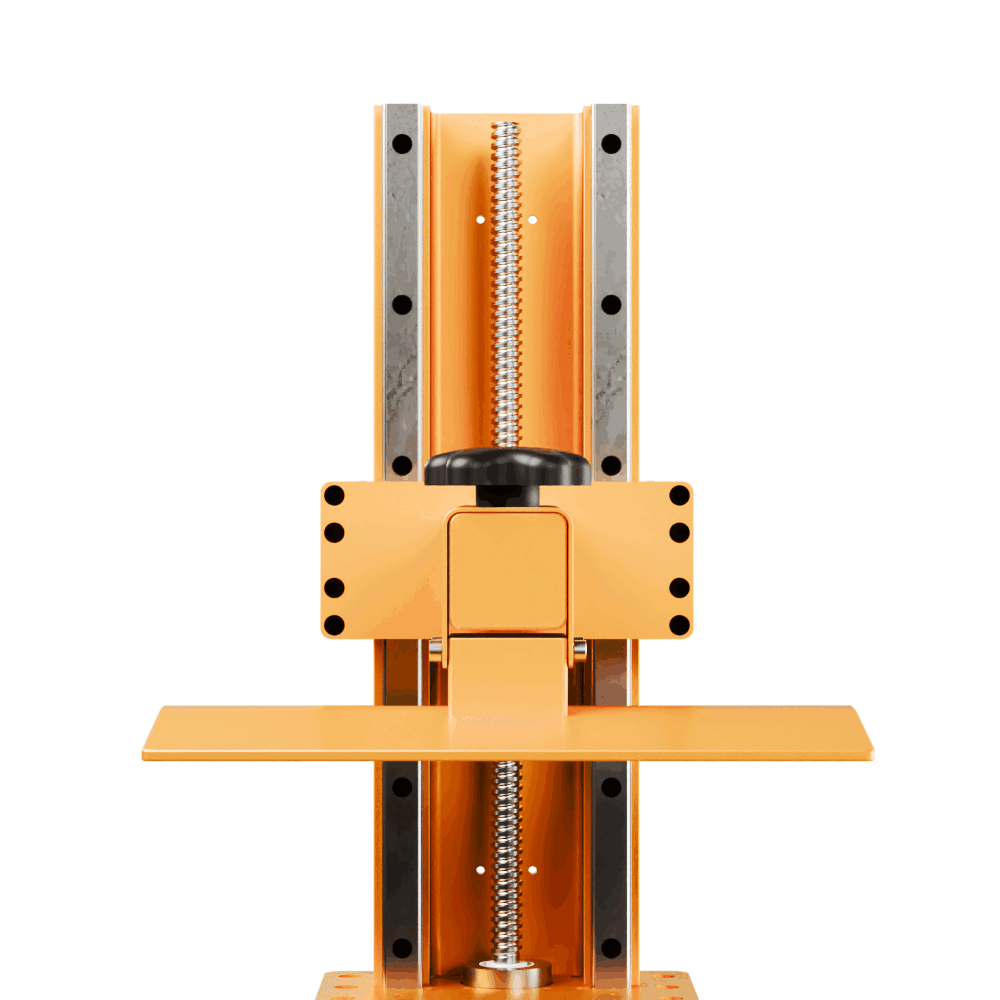

Dimensional Tolerance: Typical +/-0.2% Feature accuracy (C5 Ballscrew and Dual 15mm Linear Rails)
XY Resolution: 14x19um pixels
Layer Thickness: 10-200um layer Thickness
Materials: Open Resin System (Use any resins compatible with 405nm Light sources)
Power & Hardware Specifications
Power Requirements: 100-240V~ (50/60hz) (24V 14.6A - 350W Max)
Resin Vat: 60W Integrated heater with Temperature monitoring, nFEP/PFA vat film
On Board Storage: 8gb System Storage, expandable M.2 SSD port allows users to expand storage from 32-512gb
System Memory: 4gb Memory
Build Volume & Dimensions
Build Volume: 218.88 x 122.88 x 235mm / 211.68 x 118.37 x 235mm (XYZ)
Screen: 10.1" 12K or 9.6” 16K LCD Display
Printer Dimensions: 35x32x53cm (LxWxH)
Weight: 19kg
Software & Connectivity

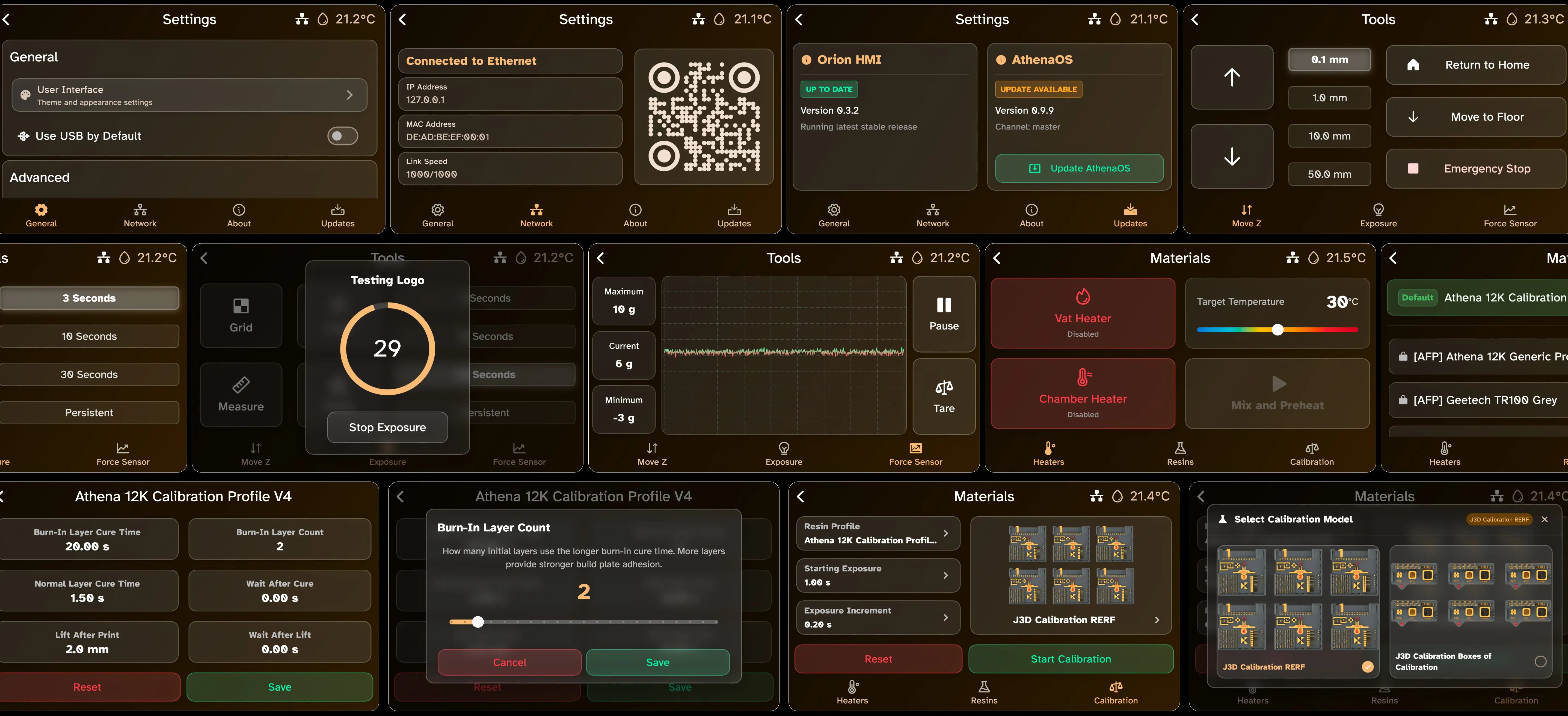

Software: Custom NanoDLP Linux OS, Custom Klipper Firmware, Built-in NanoSupport Slicer
Connectivity: Wifi, Gigabit Ethernet, Bluetooth, USB
Additional Features & Support
Included Features: Air Filter, Remote Wake on LAN, Remote Shutdown, Modular LCD, TMC Stepper Driver
Optional Features: 8MP Camera (Remote Monitoring, Print Timelapses), Resin Pump System
Support: Industry leading customer support, Zendesk powered support built into the WebUI or accessible from our Website, Email, Live Chat, Social media channels, Discord
FAQs
Where do Concepts 3D Printers get made?
Printer hardware is made in China, the final assembly of the electronics and quality control will be done in Canada and Germany. This is subject to change.
When do Pre-orders start production?
Pre-orders begin production as soon as the unit goal is reached. Est. Q1 2025. We already have production facilities established and have been testing the printer hardware, software and electronics for over 3 years.
What is the Warranty Policy for Concepts 3D printers?
We offer a 1-year warranty that begins from the date you receive your printer.
Please note: The vat/tank film, screen protector, and resin are consumable technology which is NOT covered by this warranty.
The Main LCD is covered by a 3 month warranty.
All other components of the printer are covered by the warranty. In the event of a defect, we will ship you replacement parts free of charge.
It does not void the warranty for you to open your printer and perform maintenance. Our printers were designed to be user-friendly both inside and out.
Warranty does not cover wilful damages, damages due to accident, normal wear and tear, improper care, or misuse.
If you wish to have us repair or perform maintenance on your printer for you, we are happy to do so. We will provide parts and labour, but you must cover the round trip shipping costs and parts not under warranty. You may use your preferred carrier.
Please note that Concepts 3D Systems Inc. will not be responsible for any damage caused by unattended 3d printers.
How can I get Customer Support?
Concepts 3D Customer Support can be reached by emailing support@concepts3d.ca, Visiting our help page at help.concepts3d.ca, or directly from your printers UI support section.
Support is provided from our offices in Canada and Germany.
You can also reach us at our Discord Server and our Website's Live Chat during working hours.
Are there any Forums or Groups for Athena/Concepts 3D?
We have our own Discord server for messaging and communication with other Athena users.
What countries/regions do you ship to?
Concepts 3D ships to Canada, United States, United Kingdom and anywhere in the European Union.
Full List: Austria, Belgium, Bulgaria, Canada, Croatia, Republic of Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom, United States.
Will I be able to cancel my pre-order?
You will be able to cancel your pre-order up to 14 days after purchase. Past that date you will have to wait until you receive your printer to start a return. Reach out to our team if you have further questions.
